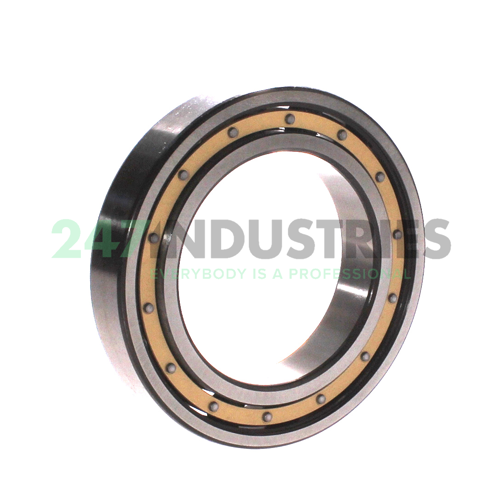

6014M/C3 SKF

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 110
3. Width (B) MM 20
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.7874

Suffix description

1. M Machined Brass Cage, Ball Centered; Different Designs And Material Grades Are Identified By A Figure Following The M, e.g. M2
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 7 pcs
2. Brand SKF
3. Item number 6014M/C3 SKF
4. EAN 7316577314321
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.755

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
