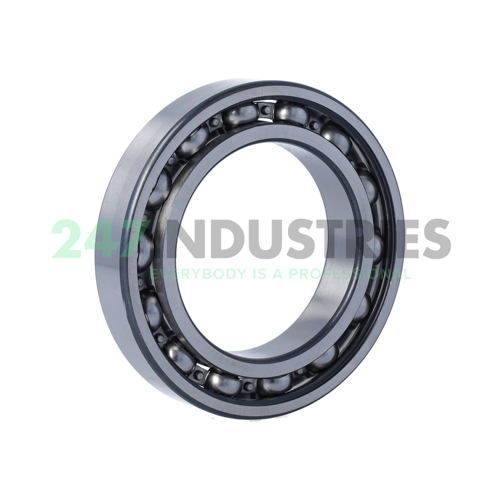

6014-C2 FAG

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 110
3. Width (B) MM 20
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. C2 Bearing Internal Clearance Smaller Than Normal

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 6014-C2 FAG
4. Also known as 0167180110020

5. EAN 4012801273947
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.602

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C2 Internal Play (Less than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 31000
2. Radial Dynamic Load Rating Cr (N) 40500
3. Limiting speed (n G) 8600
4. Reference speed (n ϑr) 6800
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 60, single row, cf. DIN 625-1
