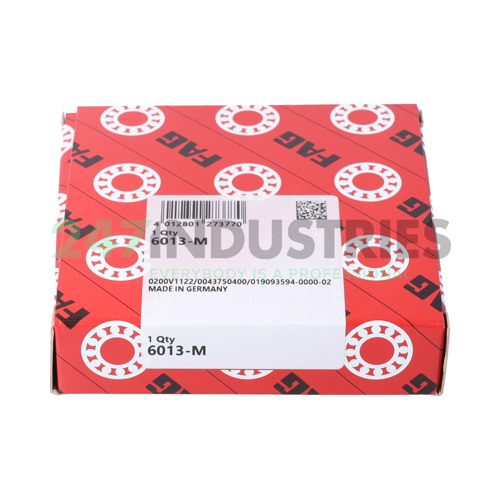

6013-M FAG

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 100
3. Width (B) MM 18
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.7087
7. Width (b) mm 18

Suffix description

1. M Solid Brass Cage, Ball-Guided

Technical details

1. Availability 19 pcs
2. Brand FAG
3. Item number 6013-M FAG
4. Also known as 0190935940000

5. EAN 4012801273770
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.515

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 25000
2. Radial Dynamic Load Rating Cr (N) 32500
3. Limiting speed (n G) 12400
4. Reference speed (n ϑr) 7100
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 60..-M, single row, cf. DIN 625-1
