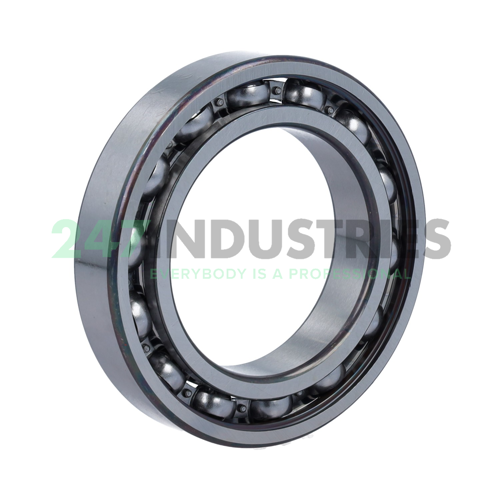

6012-P5 FAG

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 95
3. Width (B) MM 18
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.7402
6. Width (B) Inch 0.7087
7. Width (b) mm 18

Suffix description

1. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 2 pcs on Thu 22 Jan
2. Brand FAG
3. Item number 6012-P5 FAG
4. Also known as 0384041090000

5. EAN 4012801273350
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.415

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision P5 Precision (Higher than P6)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23200
2. Radial Dynamic Load Rating Cr (N) 31500
3. Limiting speed (n G) 10100
4. Reference speed (n ϑr) 7600
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 60, single row, cf. DIN 625-1
