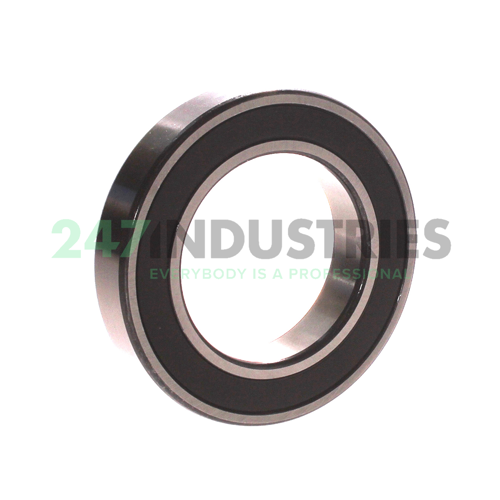

6011EEC3 SNR

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 90
3. Width (B) MM 18
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.7087

Suffix description

1. EE Rubber Seals At Each Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1 pc
2. Brand SNR
3. Item number 6011EEC3 SNR
4. Also known as 6011EE J30

5. EAN 3413520115043
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.387

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
