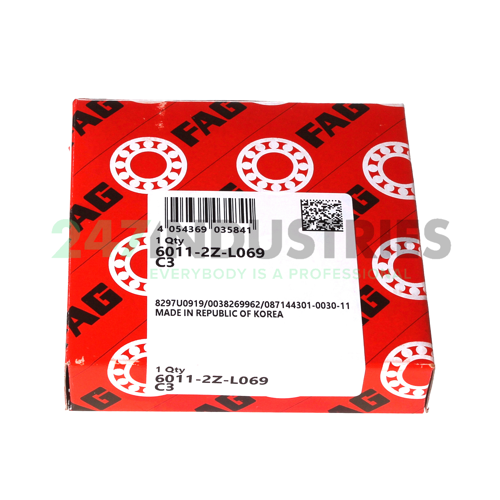

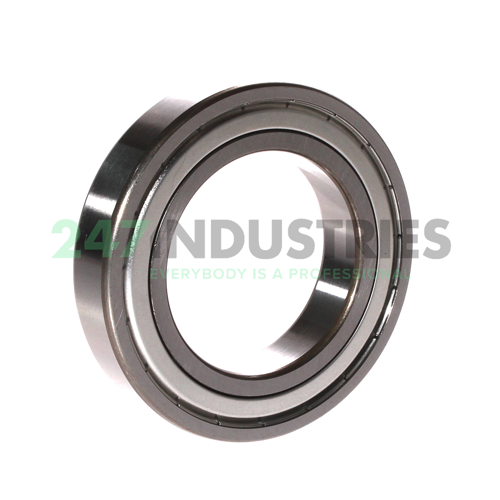

6011-2Z-L069-C3 FAG

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 90
3. Width (B) MM 18
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.7087
7. Width (b) mm 18

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L069 Insert Bearing Grease For Wide Temperature Range - Polycarbamide Ester Oil - –40°C to +180°C
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 6 pcs
2. Brand FAG
3. Item number 6011-2Z-L069-C3 FAG
4. Also known as 0871443010030
   6011-2Z/C3
   6011-2Z-C3

5. EAN 4054369035841
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.39

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 21200
2. Radial Dynamic Load Rating Cr (N) 30000
3. Limiting speed (n G) 9100
4. Reference speed (n ϑr) 8300
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearings 60..-2Z, main dimensions to DIN 625-1, gap seals on both sides
