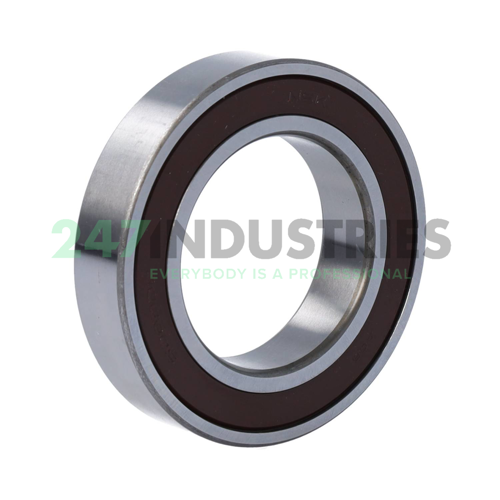

6009DDU C3E NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 75
3. Width (B) MM 16
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.9528
6. Width (B) Inch 0.6299

Suffix description

1. DDU Rubber Seals At Each Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. E Ball Bearing, Single Row Electric Motor Grade, Noise Level

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 6009DDU C3E NSK
4. Also known as 6009-2RS1/C3QE6

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.249

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
