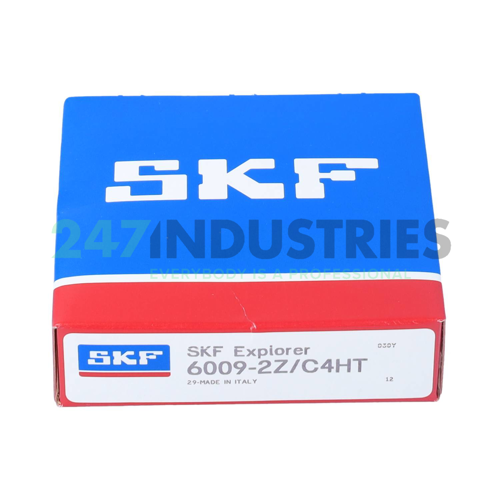

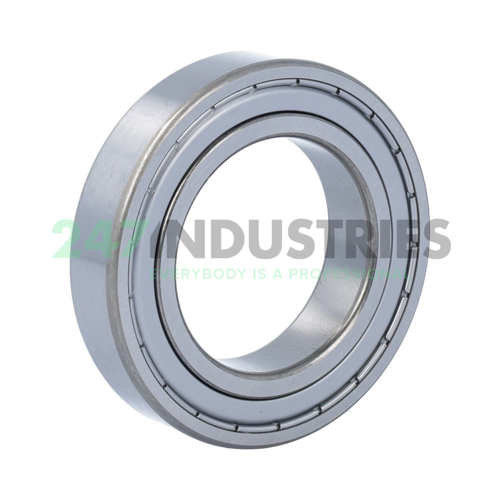

6009-2Z/C4HT SKF

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 75
3. Width (B) MM 16
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.9528
6. Width (B) Inch 0.6299

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C4 Bearing Internal Clearance Greater Than C3
3. HT Bearing Supplied With Special Grease For High Temperatures (Up To +130°C)

Technical details

1. Availability 20 pcs
2. Brand SKF
3. Item number 6009-2Z/C4HT SKF
4. Also known as 6009-2Z/C4

5. EAN 7316570089097
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.232

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
