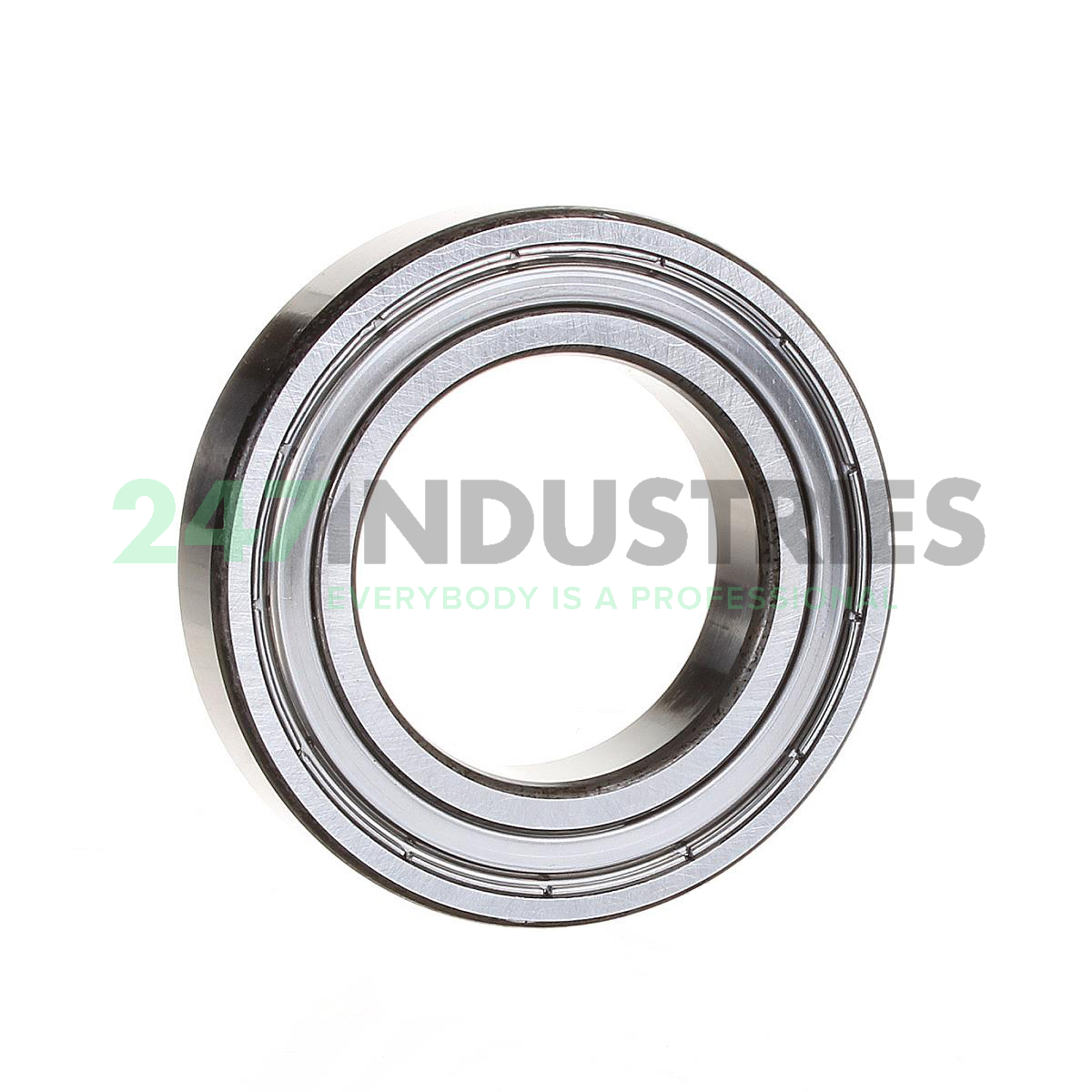

6008ZZE C3 MTSRL Nachi

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 68
3. Width (B) MM 15
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.5906

Suffix description

1. ZZ Two Metallic Shields
2. E Excel Series Radial Ball Bearing
3. C3 Internal Clearance Larger Than Normal
4. MTSRL Multemp SRL Grease. - 40º + 150º Celsius

Technical details

1. Availability 1 pc
2. Brand Nachi
3. Item number 6008ZZE C3 MTSRL Nachi
4. Also known as 6008ZZE C3

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.197

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
