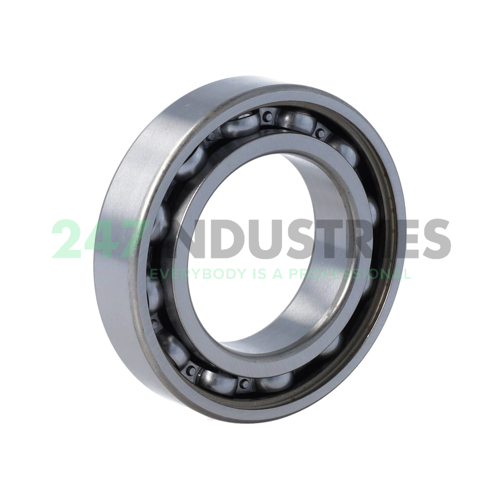

6008-RSR FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 68
3. Width (B) MM 15
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. RSR One Seal, Buna-N Rubber, Radial Type

Technical details

1. Availability 89 pcs
2. Brand FAG
3. Item number 6008-RSR FAG
4. Also known as 0190026530000

5. EAN 4012801067812
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.187

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RS - Rubber Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11500
2. Radial Dynamic Load Rating Cr (N) 17800
3. Limiting speed (n G) 5400
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Deep groove ball bearing 60..-RSR, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
