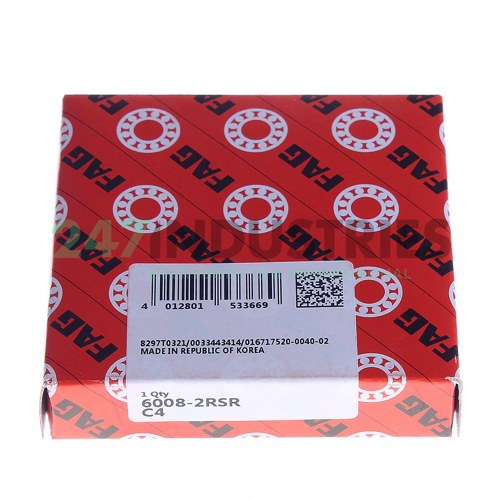

6008-2RSR-C4 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 68
3. Width (B) MM 15
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 562 pcs
2. Brand FAG
3. Item number 6008-2RSR-C4 FAG
4. Also known as 0167175200040

5. EAN 4012801533669
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.195

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11500
2. Radial Dynamic Load Rating Cr (N) 17800
3. Limiting speed (n G) 5400
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Deep groove ball bearing 60..-2RSR, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
