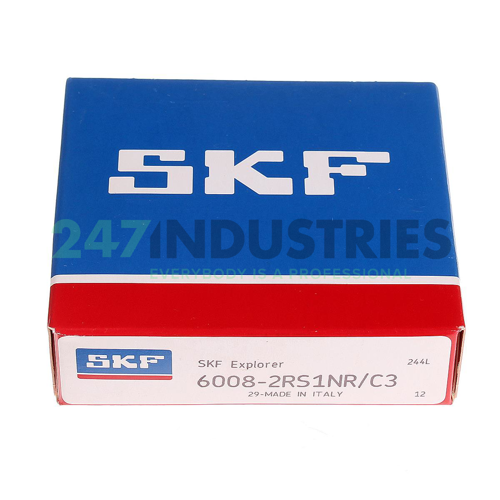

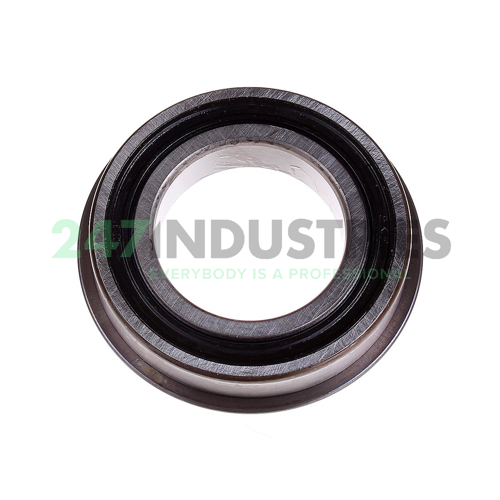

6008-2RS1NR/C3 SKF

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 68
3. Width (B) MM 15
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.5906

Suffix description

1. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
2. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 57 pcs
2. Brand SKF
3. Item number 6008-2RS1NR/C3 SKF
4. EAN 7316577314901
5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.195

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
