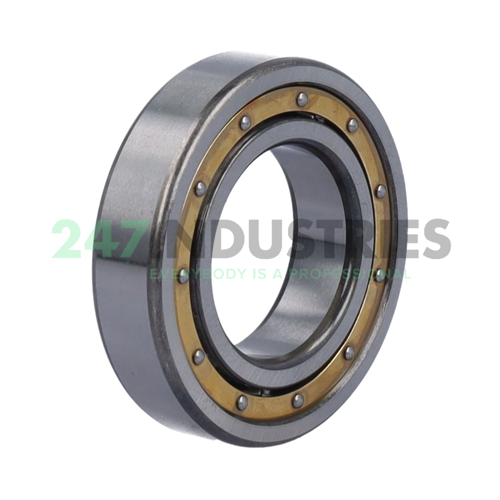

6006-MA-C3 FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 55
3. Width (B) MM 13
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.5118

Suffix description

1. MA Machined Brass Cage, Outer Ring Guided
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 40 pcs on Fri 9 Jan
2. Brand FAG
3. Item number 6006-MA-C3 FAG
4. Also known as 0384483780030

5. EAN 4012801060400
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.146

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
