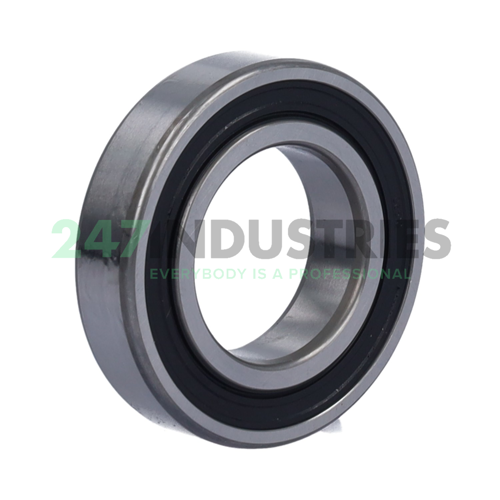

6006-2RS1/C3GJN SKF

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 55
3. Width (B) MM 13
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.5118

Suffix description

1. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. GJN Di-urea, Hi-temp. Grease 115 cSt @ 40°C, Range -40 ~ 150°C

Technical details

1. Availability 23 pcs
2. Brand SKF
3. Item number 6006-2RS1/C3GJN SKF
4. Also known as 6006-2RS1/C3
   6006-2RSR-C3

5. EAN 7316571573922
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.117

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
