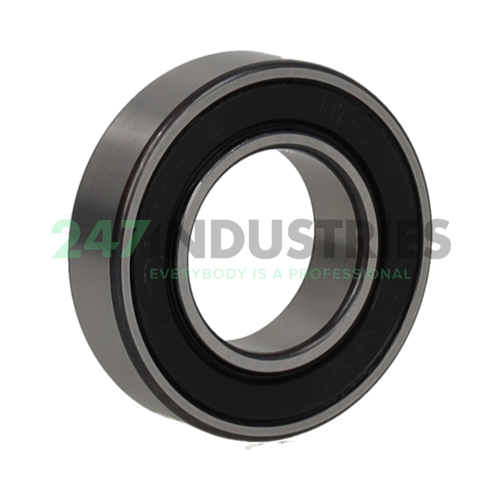

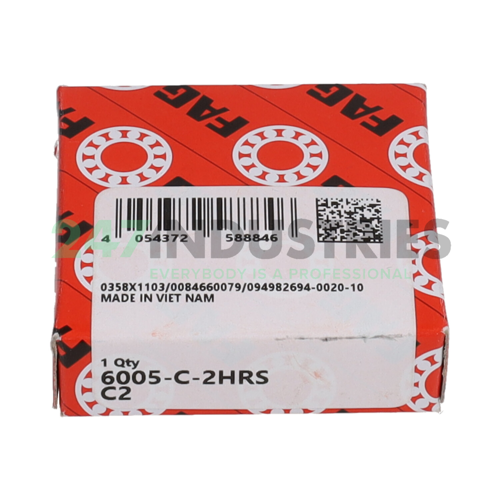

6005-C-2HRS-C2 FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 47
3. Width (B) MM 12
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.4724

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2HRS Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
3. C2 Bearing Internal Clearance Smaller Than Normal

Technical details

1. Availability 10 pcs
2. Brand FAG
3. Item number 6005-C-2HRS-C2 FAG
4. Also known as 0949826940020

5. EAN 4054372588846
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.073

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C2 Internal Play (Less than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
