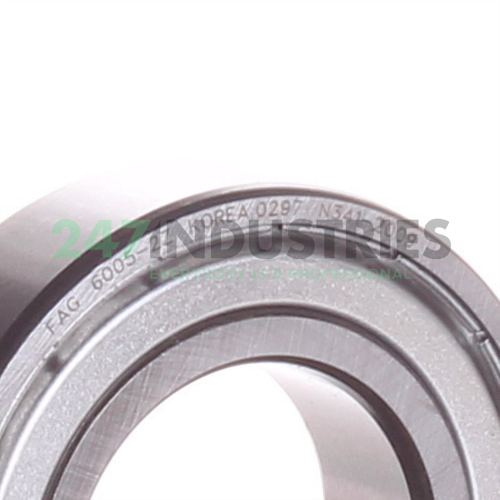

6005-2Z FAG

Steel seal (2 sides) 25x47x12mm

Stock
200 pcs available for shipment on 6 May
Brand FAG
Article number 6005-2Z FAG
Inside diameter 25,00mm
Outside diameter 47,00mm
Width 12,00mm
Product description
The 6005-2Z FAG is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.

The 6005-2Z FAG is suitable for high speeds and can operate with low noise.

The dimensions of the 6005-2Z FAG are: Bore (or inner diameter) 25mm, Outer diameter 47mm and Width (or thickness) 12mm.

6000 serie
The 6005-2Z FAG is part of the popular 6000 serie which contain extra light ball bearings and are perfect for limited space applications.The 6000 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.

Seal
The 2Z suffix indicates that the bearing has a steel seal on both sides. The bearings are filled with a high-quality grease and are lubricated for life.

About FAG
FAG is a brand of the Schaeffler Group Industrial originated in Germany. The Schaeffler Group produces two major bearing brands: FAG and INA. FAG is known for its strength in innovation, high-quality standards and wide portfolio of bearings and related products. If you choose to buy a product from FAG you are ensured of a top quality product.
Read more Show less
Help with this product

Downloads and links

Similar to: 6005-2Z FAG

Loading similair products

Product specifications

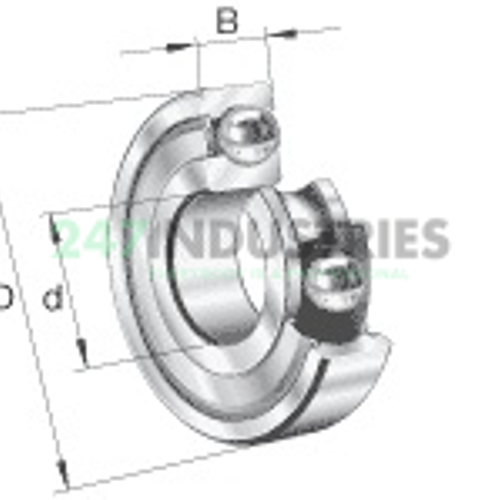

All dimensions

  1. Inner (d) MM 25,00
  2. Outer (D) MM 47,00
  3. Width (B) MM 12,00
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 1.8504
  6. Width (B) Inch 0.4724
  7. Width (b) mm 12,00

Suffix description

  1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)

Technical details

  1. Availability 200 pcs on 6 May
  2. Brand FAG
  3. Item number 6005-2Z FAG
  4. Also known as 0167172790000
    0933284270000
  5. EAN 4012801056700
  6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.08

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal ZZ/2Z - Steel Seal on Two Sides
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 5900
  2. Radial Dynamic Load Rating Cr (N) 10700
  3. Basic static load rating, radial (C 0r) "5900.0000"
  4. Limiting speed (n G) "18600.0000"
  5. Reference speed (n ϑr) "15200.0000"
  6. ECLASS number 23-05-08-01
  7. ECLASS2 number 23-05-08-01
  8. Medias description Deep groove ball bearings 60..-2Z, main dimensions to DIN 625-1, gap seals on both sides
