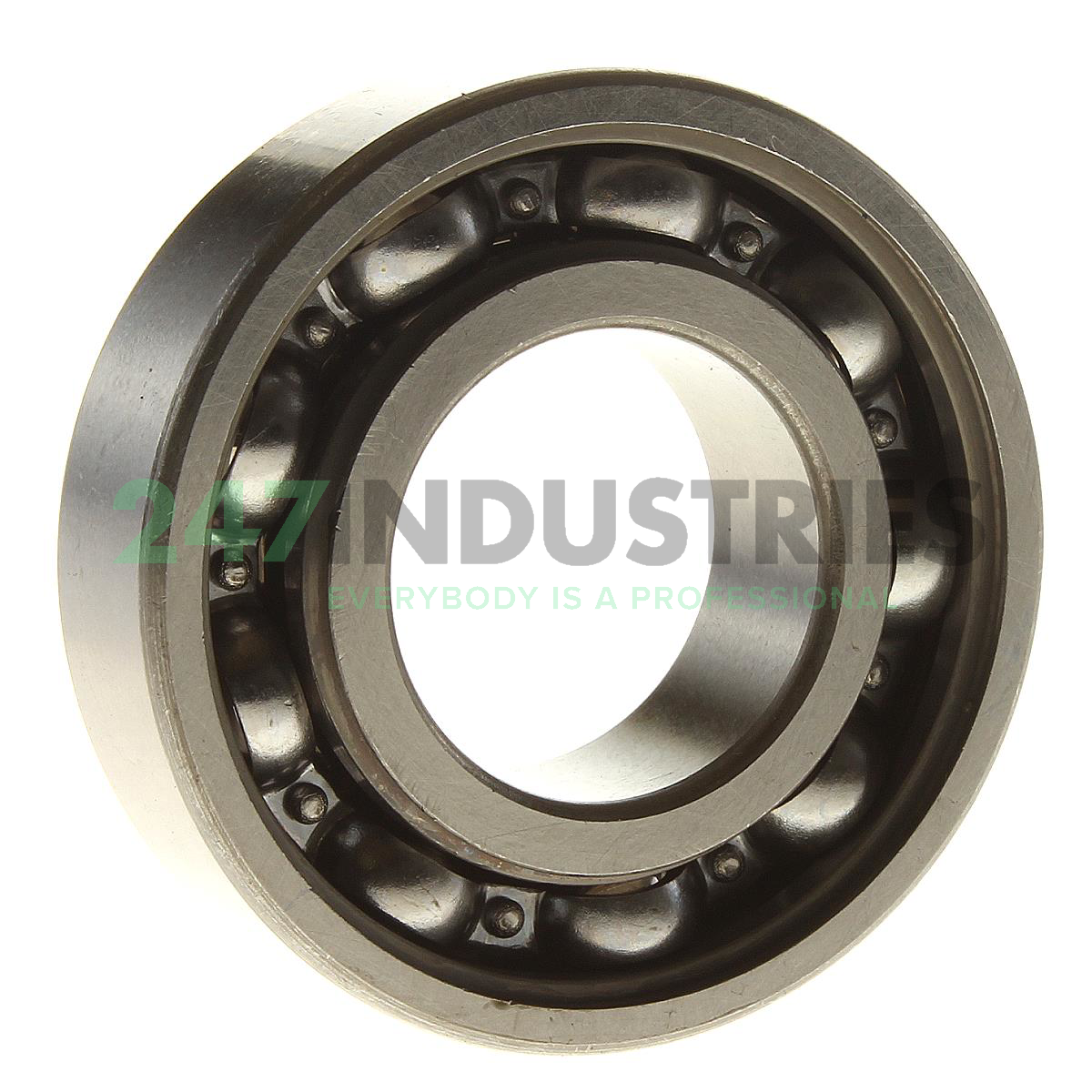

6004LU NTN

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 42
3. Width (B) MM 12
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.4724

Suffix description

1. LU Ball Bearing With Rubbing Seal At One Side. Seal Normally Consists Os Sheet Steel Washer And Rubberised Fabric

Technical details

1. Availability 74 pcs
2. Brand NTN
3. Item number 6004LU NTN
4. Also known as 6004RS
   6004-RS1
   6004-RSR

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.067

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RS - Rubber Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
