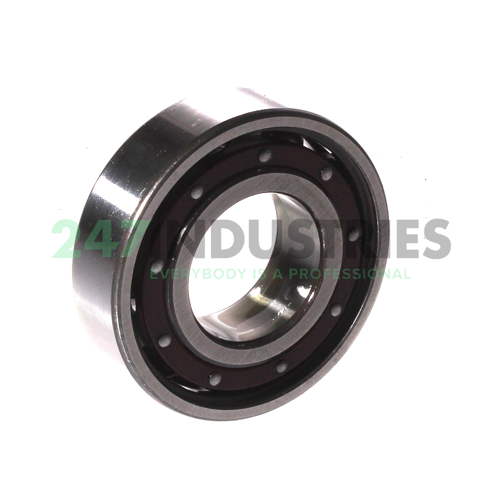

6004-TB-P6-C3 FAG

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 42,00
3. Width (B) MM 12,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.4724

Suffix description

1. TB Window-Type Cage Of Fabric Reinforced Phenolic Resin, Inner Ring Centered
2. P6 Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 50 pcs on 15 May
2. Brand FAG
3. Item number 6004-TB-P6-C3 FAG
4. Also known as 0384482700030

5. EAN 4012801055598
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.066

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type TB - Hard Fiber Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision P6 Precision (Higher than Standard)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01
