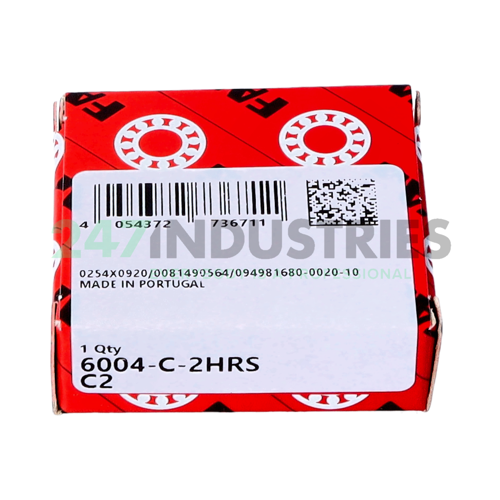

6004-C-2HRS-C2 FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 42
3. Width (B) MM 12
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.4724
7. Width (b) mm 12

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2HRS Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
3. C2 Bearing Internal Clearance Smaller Than Normal

Technical details

1. Availability 63 pcs
2. Brand FAG
3. Item number 6004-C-2HRS-C2 FAG
4. Also known as 0949816800020
   6004-2RS1/C2
   6004-2RSH/C2
   6004-2RSR-C2

5. EAN 4054372736711
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.0676

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C2 Internal Play (Less than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 5000
2. Radial Dynamic Load Rating Cr (N) 10600
3. Limiting speed (n G) 15300
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Deep groove ball bearings 60..-C-2HRS, modified internal construction (Generation C), main dimensions to DIN 625-1, lip seals on both sides
