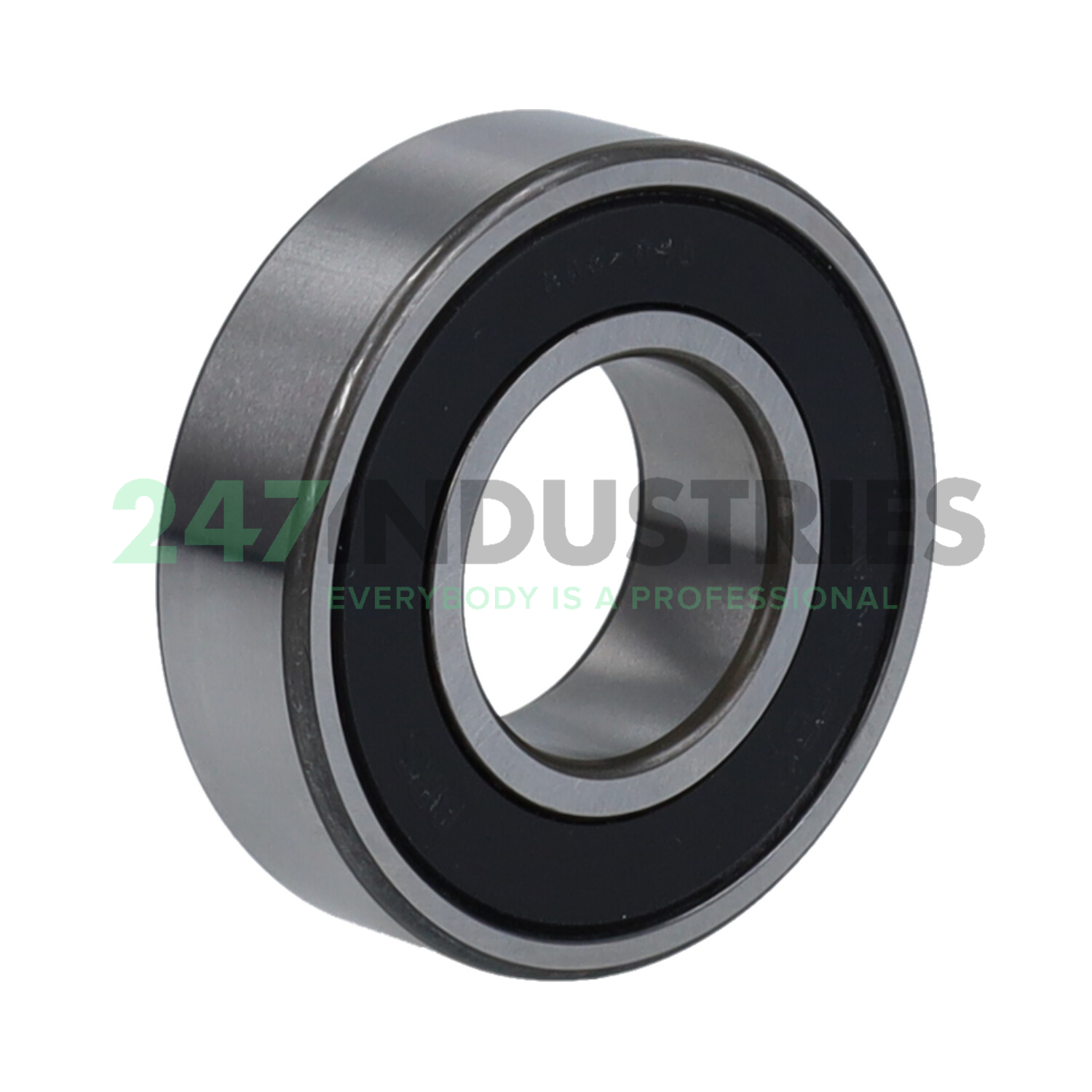

6004-C-2BRS-C3 FAG

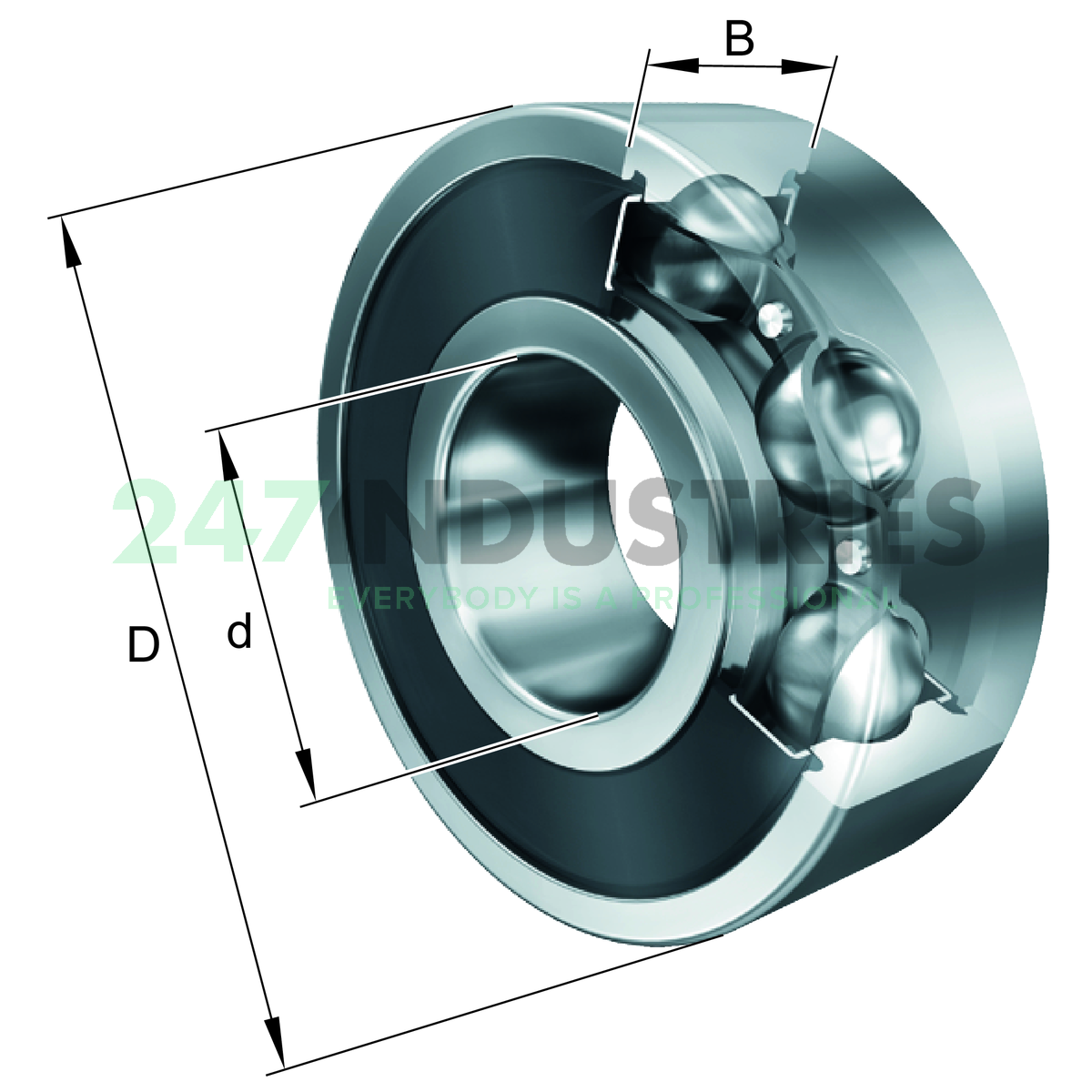

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 42,00
3. Width (B) MM 12,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.4724

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2BRS Non Contact Labyrinth Seals On Both Sides
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 84 pcs
2. Brand FAG
3. Item number 6004-C-2BRS-C3 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.066

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RU - Two Seals / Non Contact Type
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 5000
2. Radial Dynamic Load Rating Cr (N) 10600
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Deep groove ball bearings 60..-C-2BRS, Main dimensions to DIN 625-1, labyrinth seal on both sides

Downloads and links

1. Link to manufacturer Link to manufacturer
