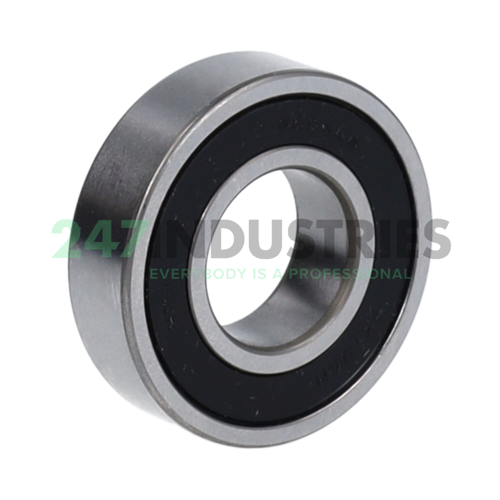

6002LLB CM/5K NTN

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 32
3. Width (B) MM 9
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3543

Suffix description

1. LLB Synthetic Rubber Seal (Non Contact Type)
2. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors, Can Be Used As Standard 'CN' Clearance
3. 5K Grease: Kyodo Yushi / Multemp SRL (-40°C to +150°C)

Technical details

1. Availability 4 pcs
2. Brand NTN
3. Item number 6002LLB CM/5K NTN
4. Also known as 6002-2RSD
   6002LLB CM

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.027

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RU - Two Seals / Non Contact Type
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
