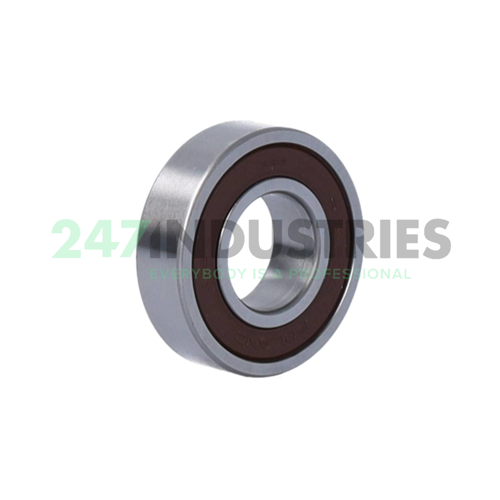

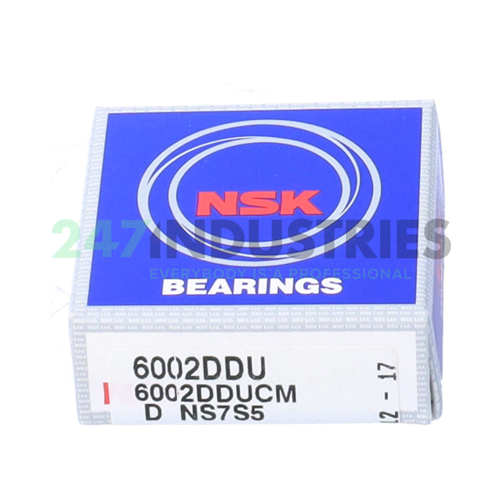

6002DDUCM NSK

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 32
3. Width (B) MM 9
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3543

Suffix description

1. DDU Rubber Seals At Each Side Of The Bearing
2. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors, Can Be Used As Standard 'CN' Clearance

Technical details

1. Availability 357 pcs
2. Brand NSK
3. Item number 6002DDUCM NSK
4. Also known as 6002 2RS
   6002-2RS1
   6002-2RS1/QE6
   6002-2RSR
   6002EE
   6002LLU

5. EAN 00029176062711
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.027

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
