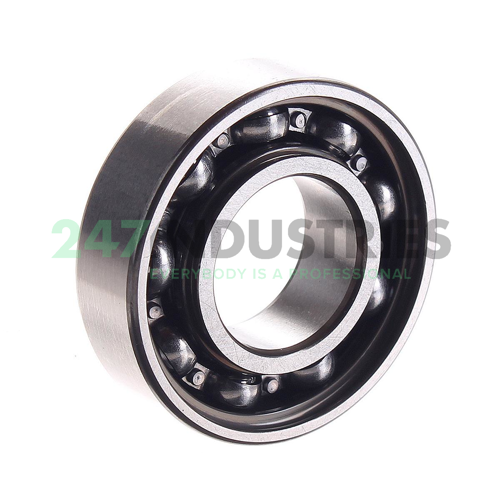

6002-C-HRS-C3 FAG

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 32
3. Width (B) MM 9
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3543

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. HRS High Speed/Low Friction Seal
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 114 pcs
2. Brand FAG
3. Item number 6002-C-HRS-C3 FAG
4. Also known as 0957694630030
   6002-C-HRS-C3>V
   6002-HRS-C3

5. EAN 4064327174697
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.029

Product Properties

1. Bore C - Cylindrical Bore
2. Seal RH - High Speed Low Friction Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 2850
2. Radial Dynamic Load Rating Cr (N) 6000
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Deep groove ball bearing 60..-C-HRS, single row, cf. DIN 625-1
