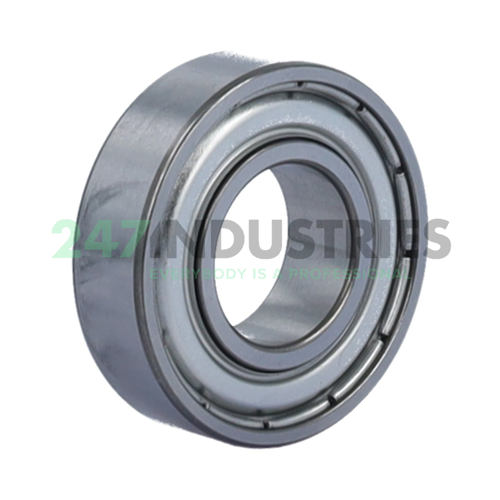

6002-C-2Z-C2 FAG

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 32
3. Width (B) MM 9
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3543

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2Z Gap Seals On Both Sides
3. C2 Bearing Internal Clearance Smaller Than Normal

Technical details

1. Availability 14 pcs
2. Brand FAG
3. Item number 6002-C-2Z-C2 FAG
4. Also known as 0593717140020
   0957026520020
   6002-2Z-C2

5. EAN 4012802363388
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.033

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C2 Internal Play (Less than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 2850
2. Radial Dynamic Load Rating Cr (N) 6000
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Deep groove ball bearings 60..-C-2Z, modified internal construction (Generation C), main dimensions to DIN 625-1, gap seals on both sides

Downloads and links

1. Link to manufacturer Link to manufacturer
