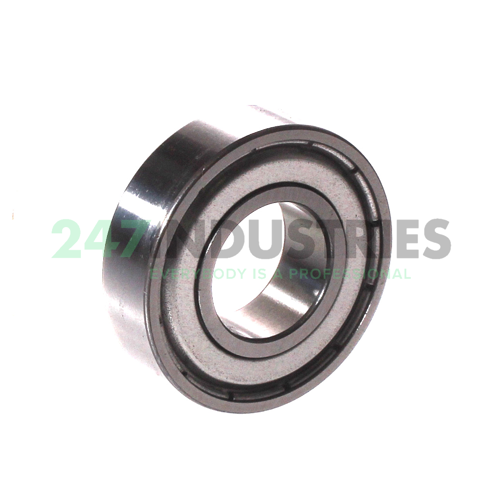

6002.2Z.T9H.P53.GLY32 Zwicker

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 32
3. Width (B) MM 9
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3543

Suffix description

1. 2Z Two Metallic Shields
2. T9H Snap Cage, Glass-Fibre-Reinforced Polyamide, Ball Riding
3. P53 Combination Of
4. P5 (Dimensional And Running Accuracy To ISO Tolerance Class 5.) And
5. C3 (Internal Clearance Larger Than Normal)
6. GLY32 Lubricant Identifier, E.G. Klüber Asonic GLY32- Thickener: Lithium - Base Oil: Ester+ Synthetic Hydrocarbon - Operational Temperature Range: -50°C ~ +140°C

Technical details

1. Availability 0 pcs
2. Brand Zwicker
3. Item number 6002.2Z.T9H.P53.GLY32 Zwicker
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.031

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision P5 Precision (Higher than P6)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
