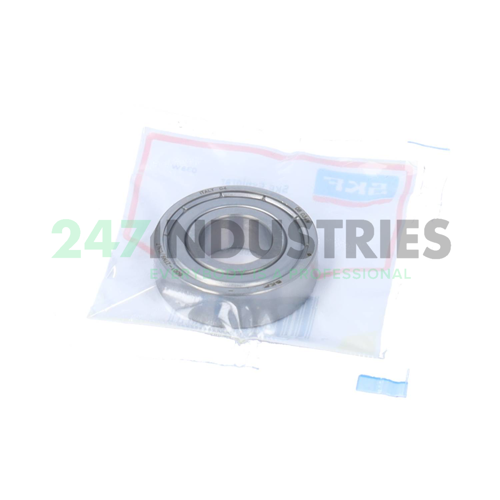

6001-ZTN9/C3LT SKF

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 28
3. Width (B) MM 8
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.315

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
3. C3 Internal Clearance Larger Than Normal
4. LT Bearing Supplied With Special Grease For Low Temperatures e.g. -50°C/+80°C

Technical details

1. Availability 47 pcs
2. Brand SKF
3. Item number 6001-ZTN9/C3LT SKF
4. Also known as 6001-C-Z-TVH-C3
   6001-ZTN9/C3

5. EAN 7316570661088
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.022

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Low Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
