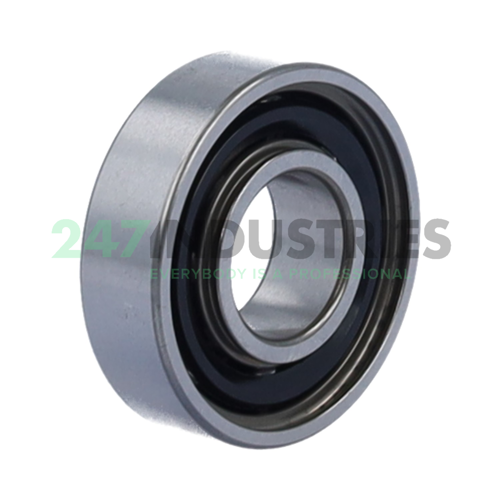

6001-C-Z-TVH FAG

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 28
3. Width (B) MM 8
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.315

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
3. TVH Cage Made From Glass Fibre Reinforced Polyamide, Rolling Element Riding
4. >V 100% Identical Regardless Of Production Location

Technical details

1. Availability 218 pcs
2. Brand FAG
3. Item number 6001-C-Z-TVH FAG
4. Also known as 0954048300000
   6001-Z-TVH

5. EAN 4064327029652
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.022

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 2370
2. Radial Dynamic Load Rating Cr (N) 5900
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Deep groove ball bearing 60..-C-Z-TVH, single row, cf. DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
