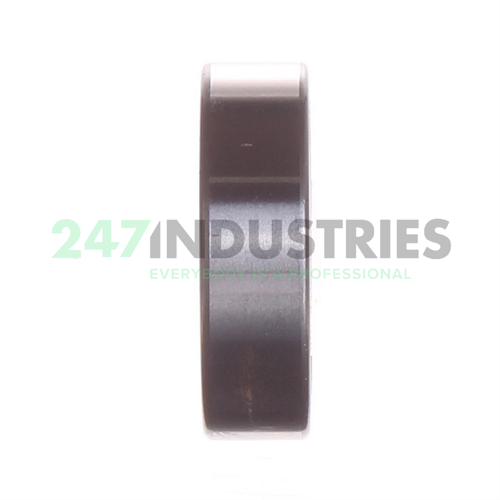

6001-C FAG

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 28
3. Width (B) MM 8
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.315
7. Width (b) mm 8

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction

Technical details

1. Availability 1,876 pcs
2. Brand FAG
3. Item number 6001-C FAG
4. Also known as 0592072480000
   0954045890000
   6001

5. EAN 4012802358841
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.022

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 2370
2. Radial Dynamic Load Rating Cr (N) 5900
3. Basic static load rating, radial (C 0r) "2370.0000"
4. Limiting speed (n G) 42500
5. Reference speed (n ϑr) 26000
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearings 60..-C, modified internal construction (Generation C), main dimensions to DIN 625-1
