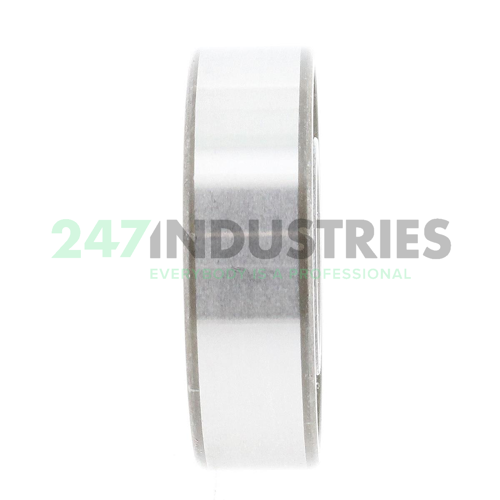

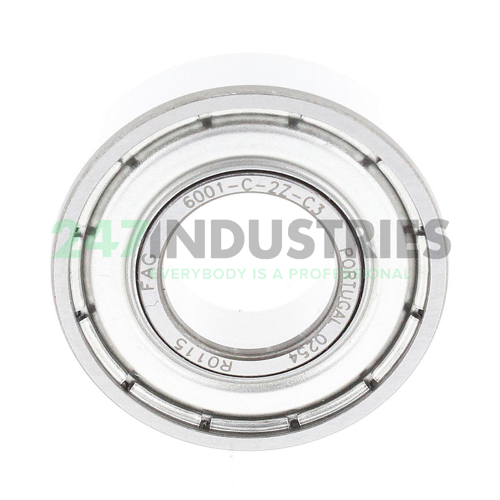

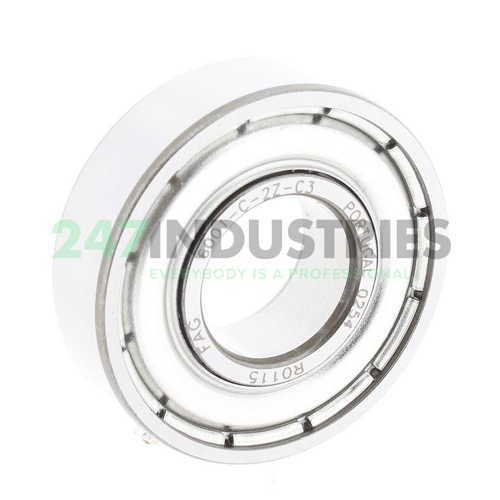

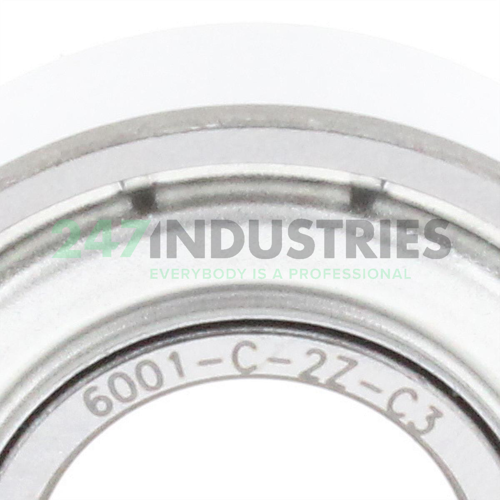

6001-C-2Z-C3 FAG

All dimensions

1. Inner (d) MM 12,00
2. Outer (D) MM 28,00
3. Width (B) MM 8,00
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.3150
7. Width (b) mm 8,00

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2Z Gap Seals On Both Sides
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 538 pcs
2. Brand FAG
3. Item number 6001-C-2Z-C3 FAG
4. Also known as 0592077360030
   0954047160030
   6001.2ZR.C3
   6001-2Z/C3
   6001-2Z-C3

5. EAN 4012802360851
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.022

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 2370
2. Radial Dynamic Load Rating Cr (N) 5900
3. Basic static load rating, radial (C 0r) "2370.0000"
4. Limiting speed (n G) "36000.0000"
5. Reference speed (n ϑr) "26000.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearings 60..-C-2Z, modified internal construction (Generation C), main dimensions to DIN 625-1, gap seals on both sides
