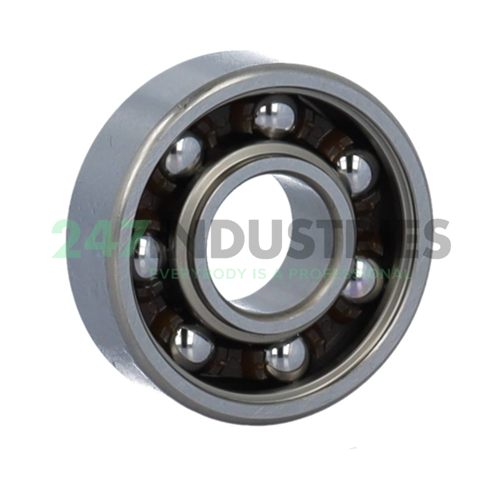

6000T1X Z1 C3E NSK

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 26
3. Width (B) MM 8
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.315

Suffix description

1. T1X Polyamide Retainer
2. Z1 One Stainless Steel Shield
3. C3 Internal Clearance Larger Than Normal
4. E Ball Bearing, Single Row Electric Motor Grade, Noise Level

Technical details

1. Availability 2,530 pcs
2. Brand NSK
3. Item number 6000T1X Z1 C3E NSK
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.018

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
