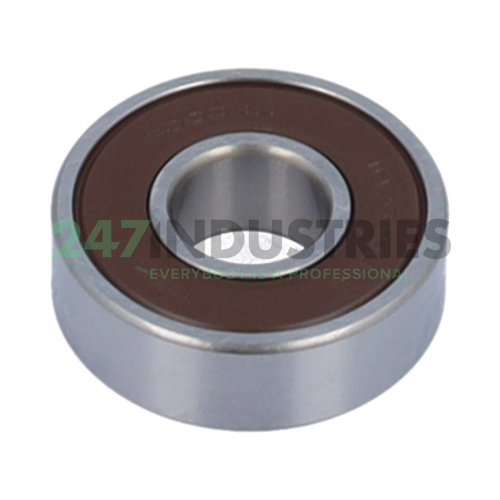

6000DDUC3E NSK

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 26
3. Width (B) MM 8
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.315

Suffix description

1. DDU Rubber Seals At Each Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. E Ball Bearing, Single Row Electric Motor Grade, Noise Level

Technical details

1. Availability 5,150 pcs
2. Brand NSK
3. Item number 6000DDUC3E NSK
4. Also known as 6000 2RS C3
   6000-2RS1/C3
   6000-2RS1/C3QE6
   6000-2RSR-C3
   6000EE J30
   6000EEC3
   6000LLUC3

5. EAN 00029176062667
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.02

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
