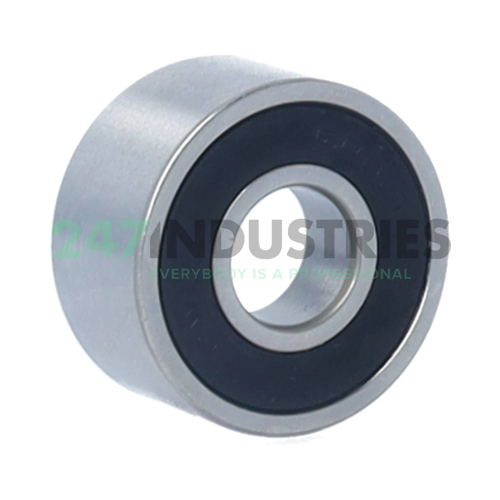

6000C13.5 LU V V2 L10-6 CW Bearing

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 26
3. Width (B) MM 8
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.315

Suffix description

1. C13.5 Unknown
2. LU Ball Bearing With Rubbing Seal At One Side. Seal Normally Consists Os Sheet Steel Washer And Rubberized Fabric
3. V Unknown
4. V2 Vibration Level: Electric Motor Quality
5. L10-6 Lubricant, Shell Oil Co. Aeroshell Fluid 12, Temperature Range -54 ~ 150°C

Technical details

1. Availability 214 pcs
2. Brand CW Bearing
3. Item number 6000C13.5 LU V V2 L10-6 CW Bearing
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.0188

Product Properties

1. Bore C - Cylindrical Bore
2. Seal L - LS-seal at One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
