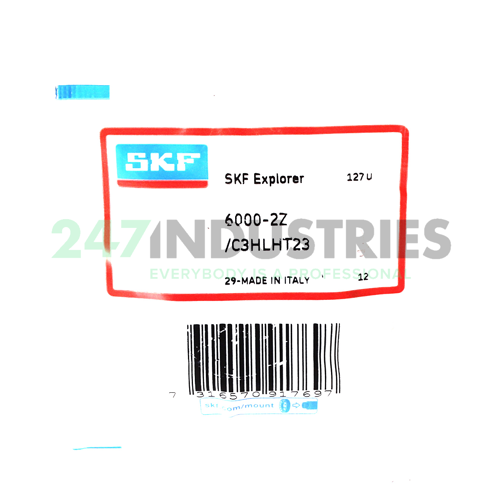

6000-2Z/C3HLHT23 SKF

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 26
3. Width (B) MM 8
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.315

Suffix description

1. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
2. C3H Internal. Play Upper Half C3 Range
3. LHT23 Lithium Grease, Wide Range, 26 cSt @ 40°C, Range -50 ~ 140°C. A Two-Figure Number Following LHT Identifies The Actual Grease

Technical details

1. Availability 75 pcs
2. Brand SKF
3. Item number 6000-2Z/C3HLHT23 SKF
4. Also known as 6000-2Z/C3H

5. EAN 7316570917697
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.018

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Int. Play Upper Half C3 Range
6. Precision Standard Precision
7. Lubrication L - -50°C/+140°C
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
