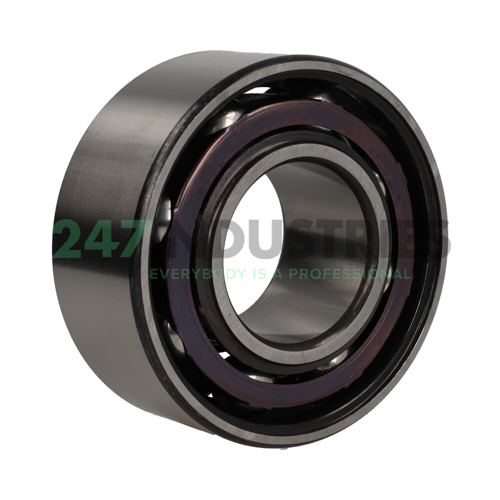

5312A/C3 SKF

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 130
3. Width (B) MM 54
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 2.126

Suffix description

1. A Double Row Angular Contact Ball Bearing Without Filling Slots
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 5 pcs
2. Brand SKF
3. Item number 5312A/C3 SKF
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 2.9298

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
