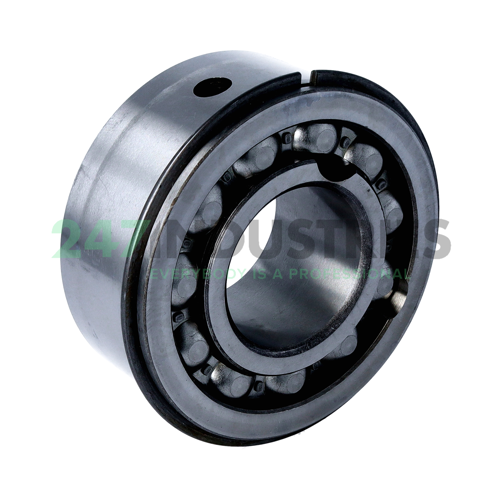

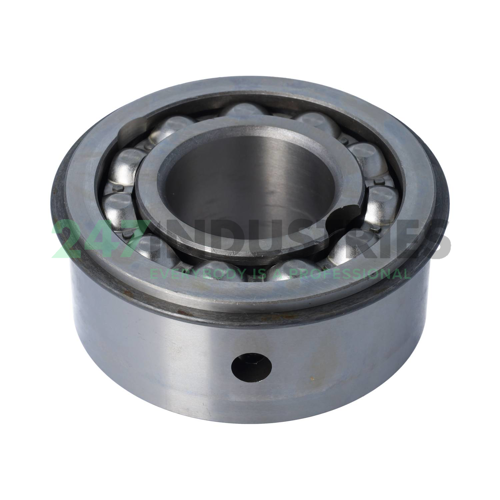

5311FG MRC/Marlin Rockwell

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 120
3. Width (B) MM 49,2
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.9375

Suffix description

1. F One Shield
2. G Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring

Technical details

1. Availability 22 pcs
2. Brand MRC/Marlin Rockwell
3. Item number 5311FG MRC/Marlin Rockwell
4. Also known as 5311ZNR
   5311-ZNR

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 2.55

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
