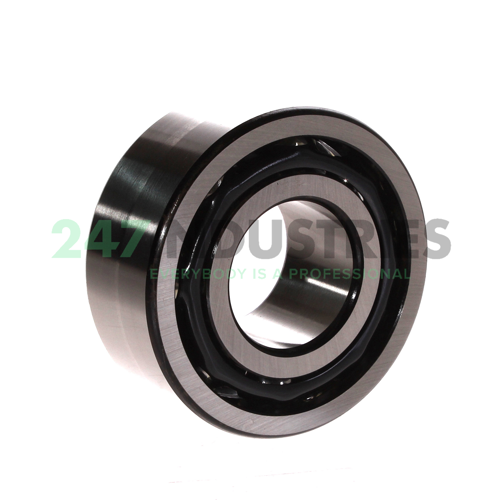

5308K C3 Timken

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 36,5
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.437

Suffix description

1. K Conrad (Non-Filling Slot) Type
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand Timken
3. Item number 5308K C3 Timken
4. Also known as 5308KC3

5. EAN 0087796043787
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.981

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
