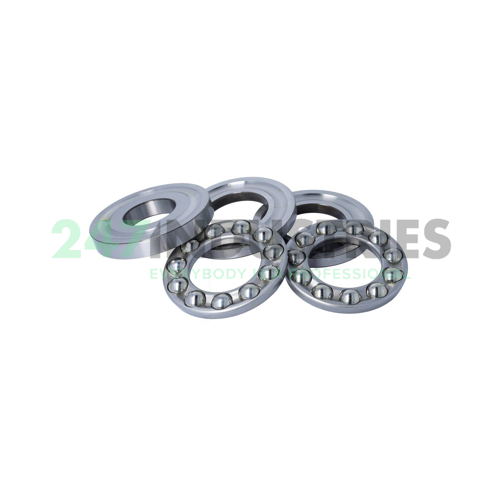

52311 FAG

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 105,00
3. Width (B) MM 64,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 4.1339
6. Width (B) Inch 2.5197
7. Outer diameter housing washer (D) mm 105,00
8. Height (T 2) mm 64,00

Technical details

1. Availability 7 pcs
2. Brand FAG
3. Item number 52311 FAG
4. Also known as 0190070190000

5. EAN 4012801322416
6. Category Thrust Ball Bearing Double Direction

Weight and Dimensions

1. Weight (kg) 2.3659

Product Properties

1. Cage Type S - Steel or Standard Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "102000.0000"
2. Axial Static Load Rating C0a (N) 207000
3. Basic static load rating, axial (C 0a) "207000.0000"
4. Axial Dynamic Load Rating Ca (N) 102000
5. Limiting speed (n G) "3200.0000"
6. Reference speed (n ϑr) "5700.0000"
7. ECLASS number 23-05-10-01
8. ECLASS2 number 23-05-10-01
9. Medias description Axial deep groove ball bearings 523, main dimensions to DIN 711/ISO 104, double direction, separable
