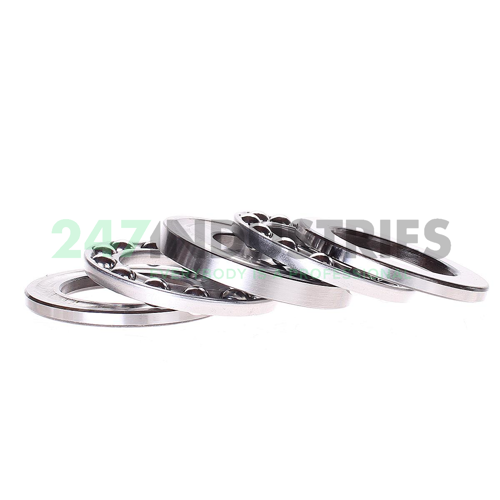

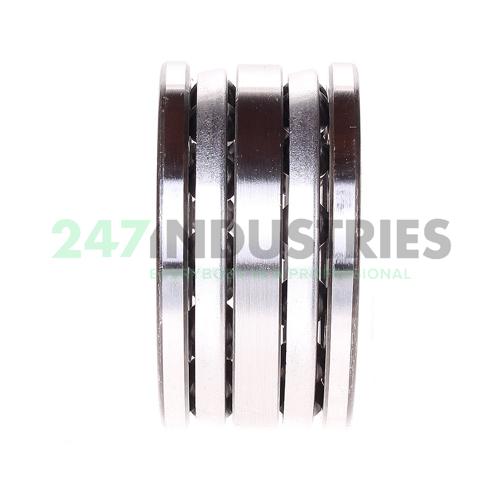

52209 FAG

All dimensions

1. Inner (d) MM 35,00
2. Outer (D) MM 73,00
3. Width (B) MM 37,00
4. Inner (d) Inch 1.3780
5. Outer (D) Inch 2.8740
6. Width (B) Inch 1.4567
7. Outer diameter housing washer (D) mm 73,00
8. Height (T 2) mm 37,00

Technical details

1. Availability 16 pcs
2. Brand FAG
3. Item number 52209 FAG
4. Also known as 0190069420000

5. EAN 4012801162654
6. Category Thrust Ball Bearing Double Direction

Weight and Dimensions

1. Weight (kg) 0.6

Product Properties

1. Cage Type S - Steel or Standard Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "39000.0000"
2. Axial Static Load Rating C0a (N) 80000
3. Basic static load rating, axial (C 0a) "80000.0000"
4. Axial Dynamic Load Rating Ca (N) 39000
5. Limiting speed (n G) "5500.0000"
6. Reference speed (n ϑr) "6500.0000"
7. ECLASS number 23-05-10-01
8. ECLASS2 number 23-05-10-01
9. Medias description Axial deep groove ball bearings 522, main dimensions to DIN 711/ISO 104, double direction, separable
