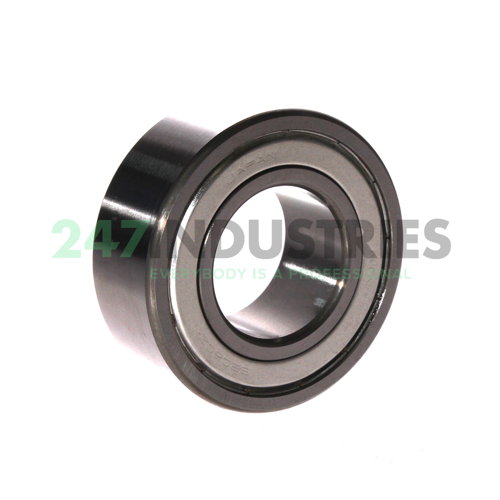

5208SCZZ/2AS NTN

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 30,2
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.189

Suffix description

1. S Pressed Steel Cage
2. C 15° Contact Angle
3. ZZ Two Metallic Shields
4. 2AS Lubricant, Shell Oil Co., Alvania #2 Grease, Mil-G-18709A

Technical details

1. Availability 1 pc
2. Brand NTN
3. Item number 5208SCZZ/2AS NTN
4. EAN 4547359537376
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.587

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
