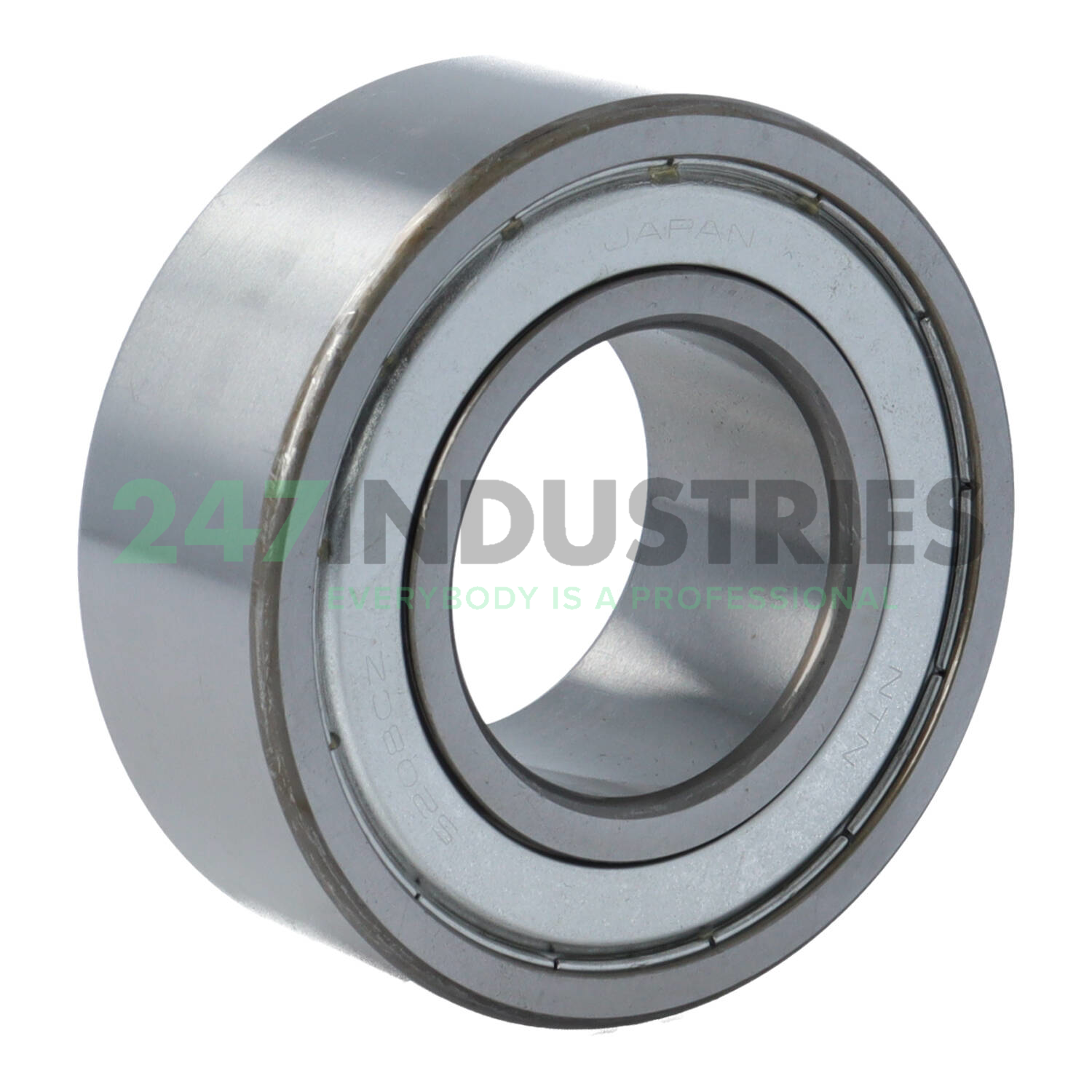

5208CZZ NTN

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 30,2
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.189

Suffix description

1. C 15° Contact Angle
2. ZZ Two Metallic Shields

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 5208CZZ NTN
4. Also known as 5208A-2Z

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.587

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
