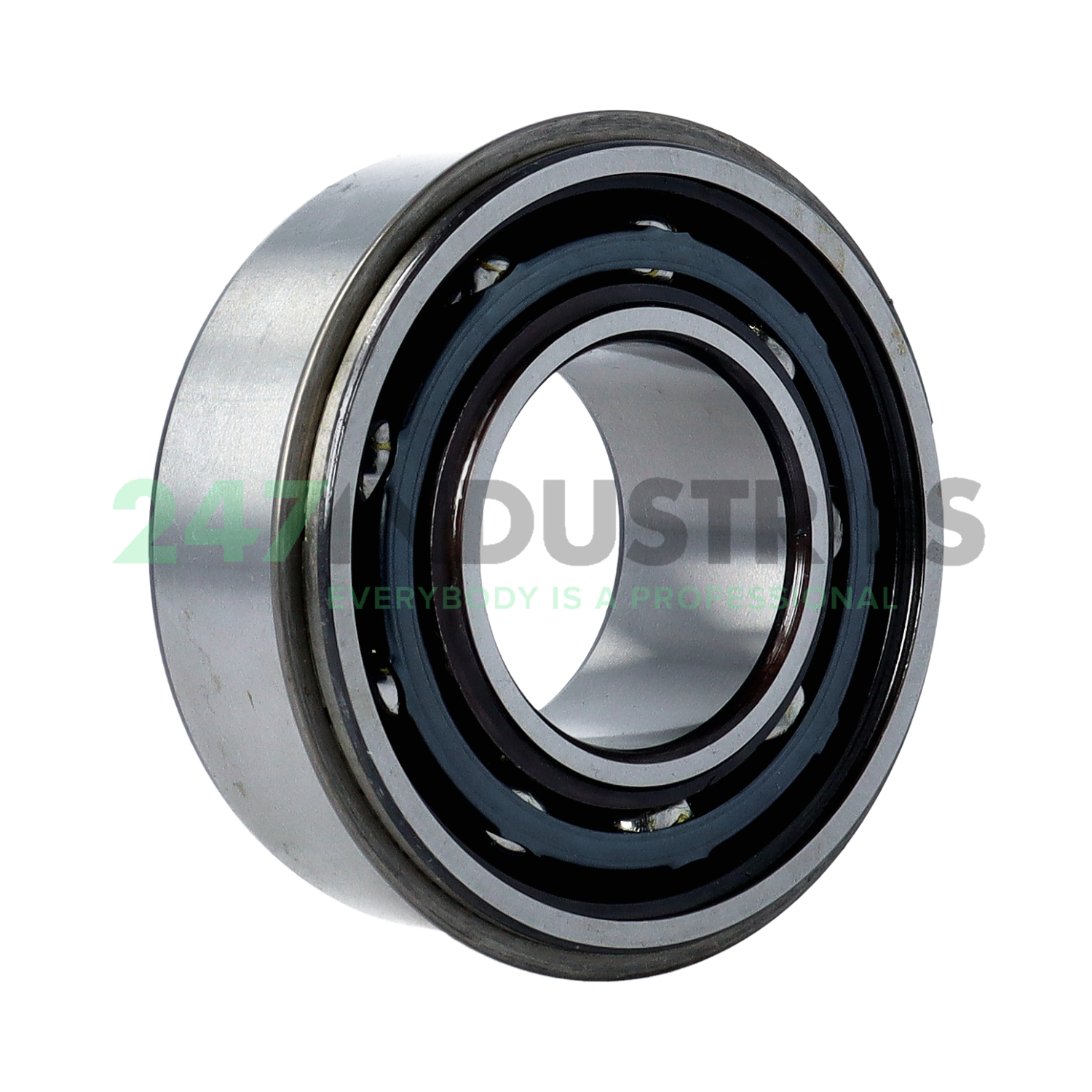

5208CFG MRC/Marlin Rockwell

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 30,2
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.189

Suffix description

1. C Double Row Angular Contact, Non-Filling Notch Ball Bearing, With Outwardly Convergent Contact Angles, Rigid Design
2. F One Shield
3. G Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring

Technical details

1. Availability 8 pcs
2. Brand MRC/Marlin Rockwell
3. Item number 5208CFG MRC/Marlin Rockwell
4. Also known as 5208A-ZNR

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.581

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
