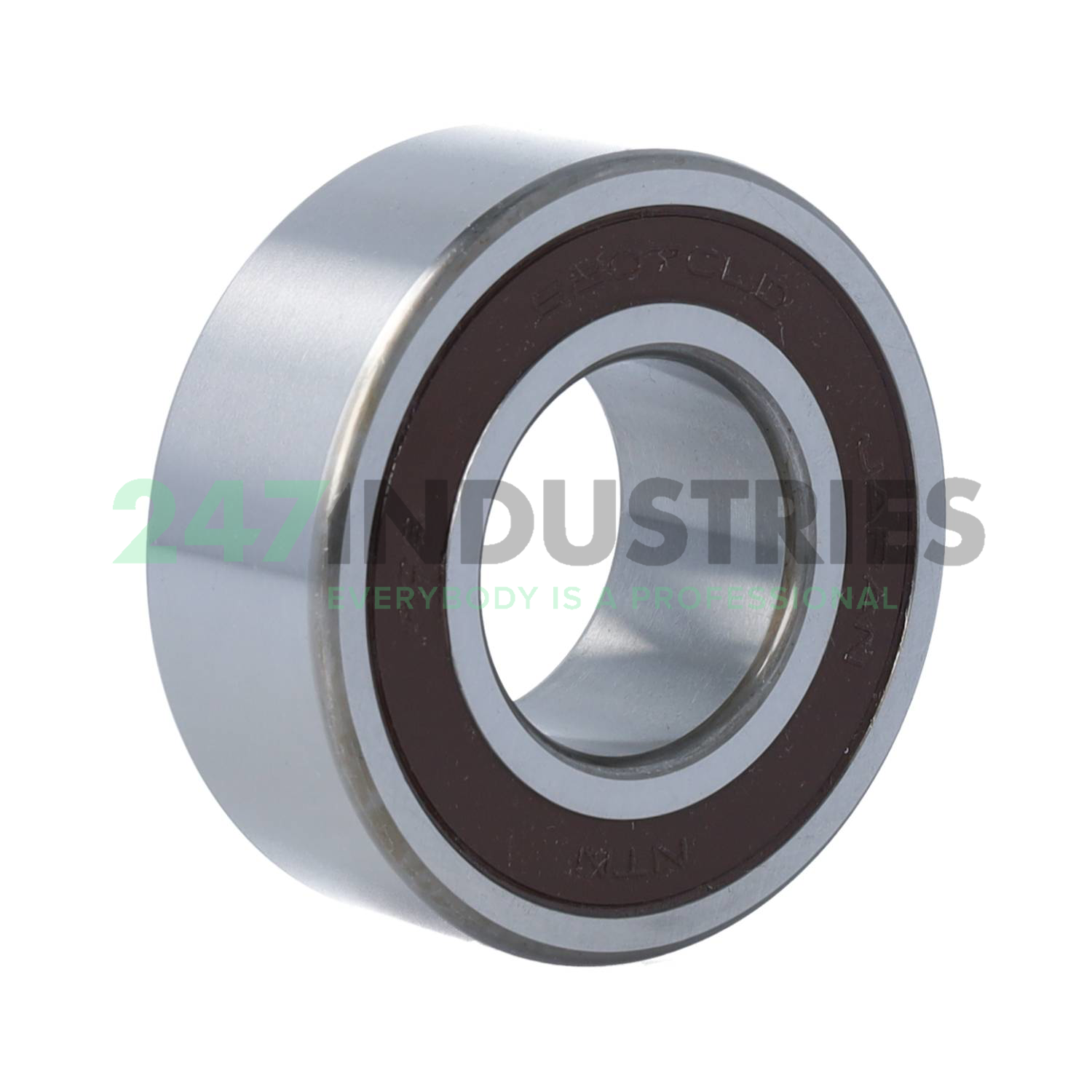

5207CLLU NTN

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 27
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.063

Suffix description

1. C 15° Contact Angle
2. LLU Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 5207CLLU NTN
4. Also known as 5207 2RS
   5207A-2RS1

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.44

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
