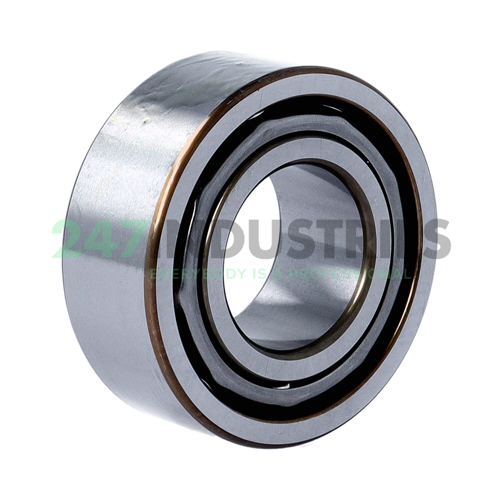

5206C3 NSK

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 23,8
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.937

Suffix description

1. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 3 pcs
2. Brand NSK
3. Item number 5206C3 NSK
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.293

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
