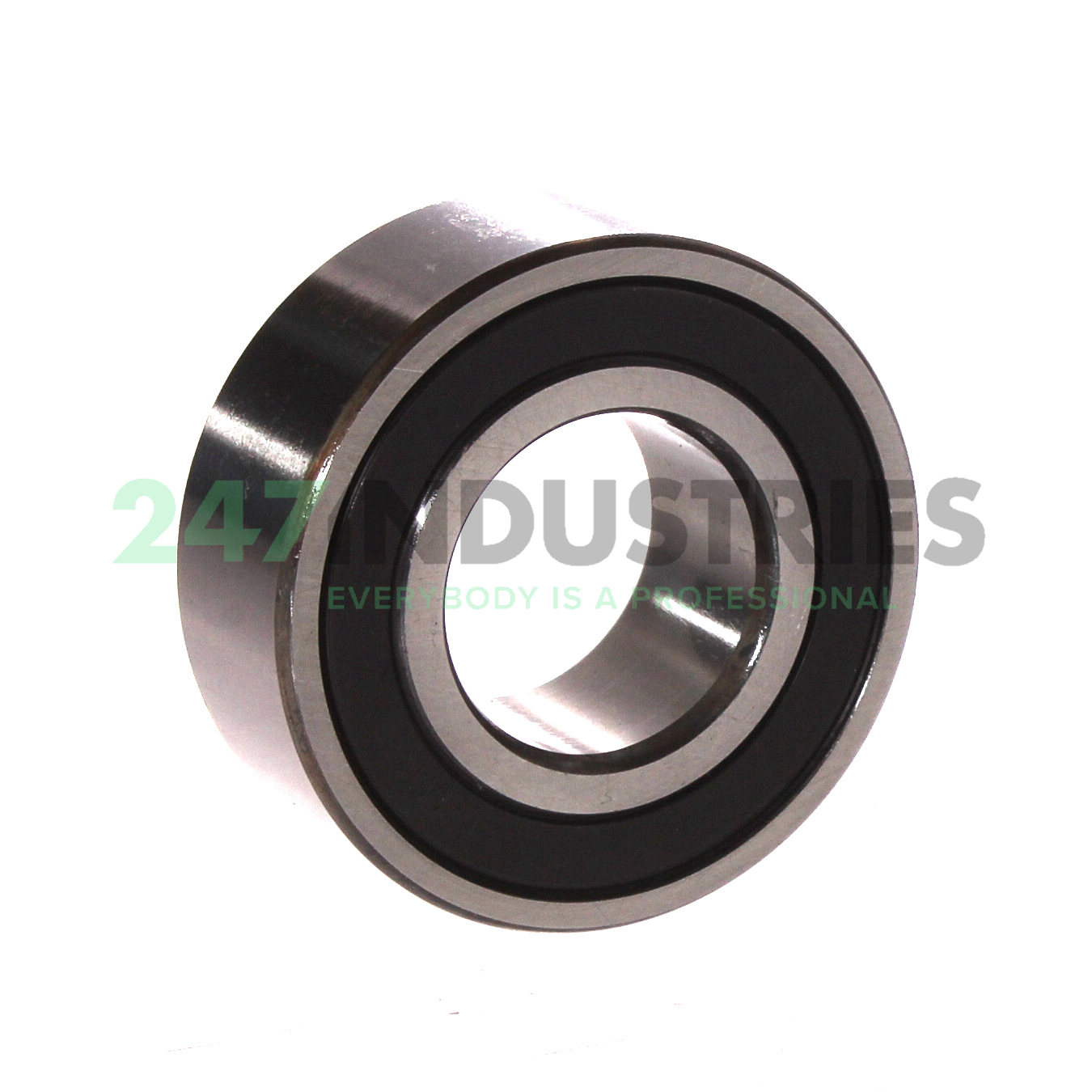

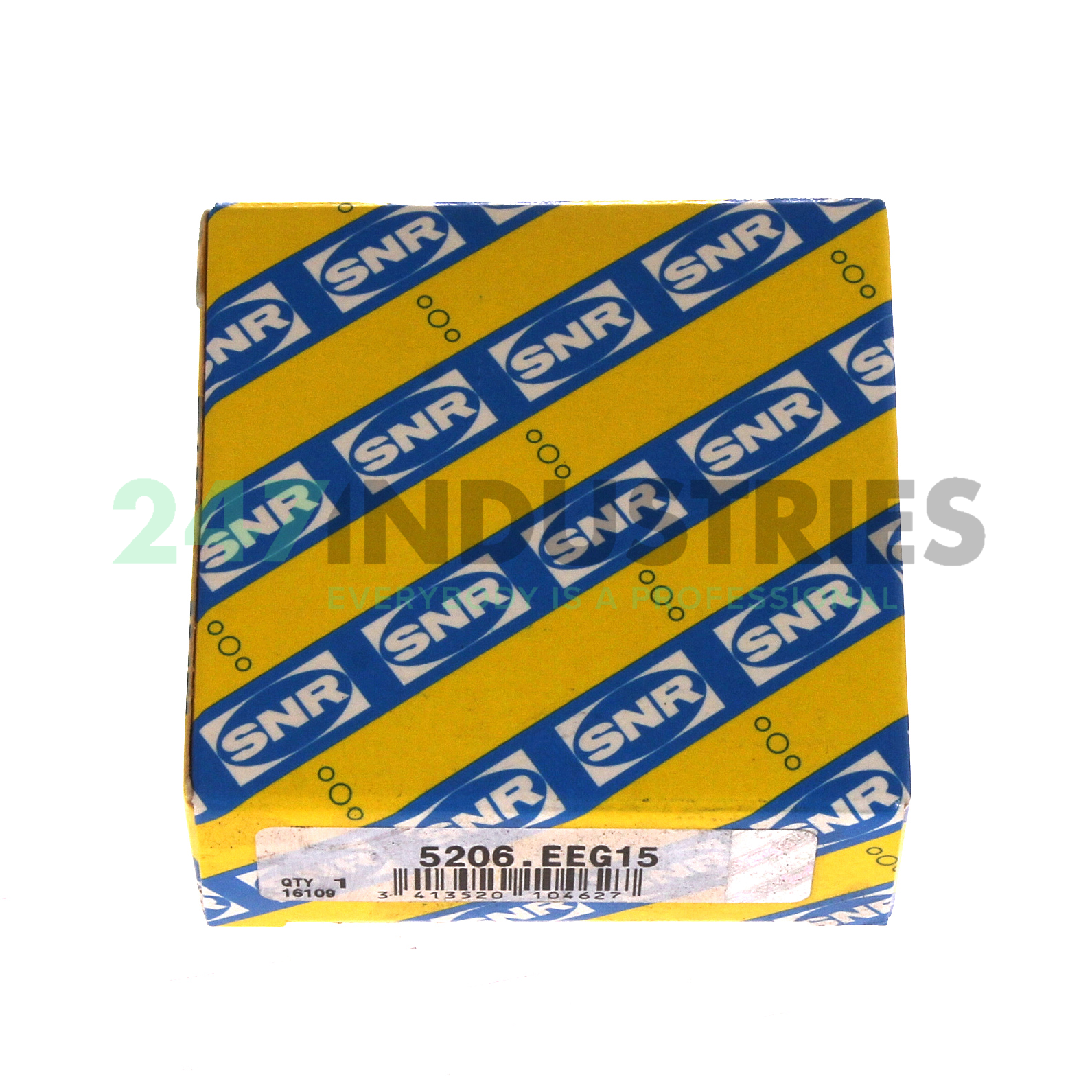

5206.EEG15 SNR

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 23,8
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.937

Suffix description

1. EE Rubber Seals At Each Side Of The Bearing
2. G15 Injection Moulded Cage Of Glass Fibre Reinforced Polyamide 6,6, Rolling Element Centred

Technical details

1. Availability 4 pcs
2. Brand SNR
3. Item number 5206.EEG15 SNR
4. Also known as 5206E-2RS1TN9

5. EAN 3413520104627
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.289

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
