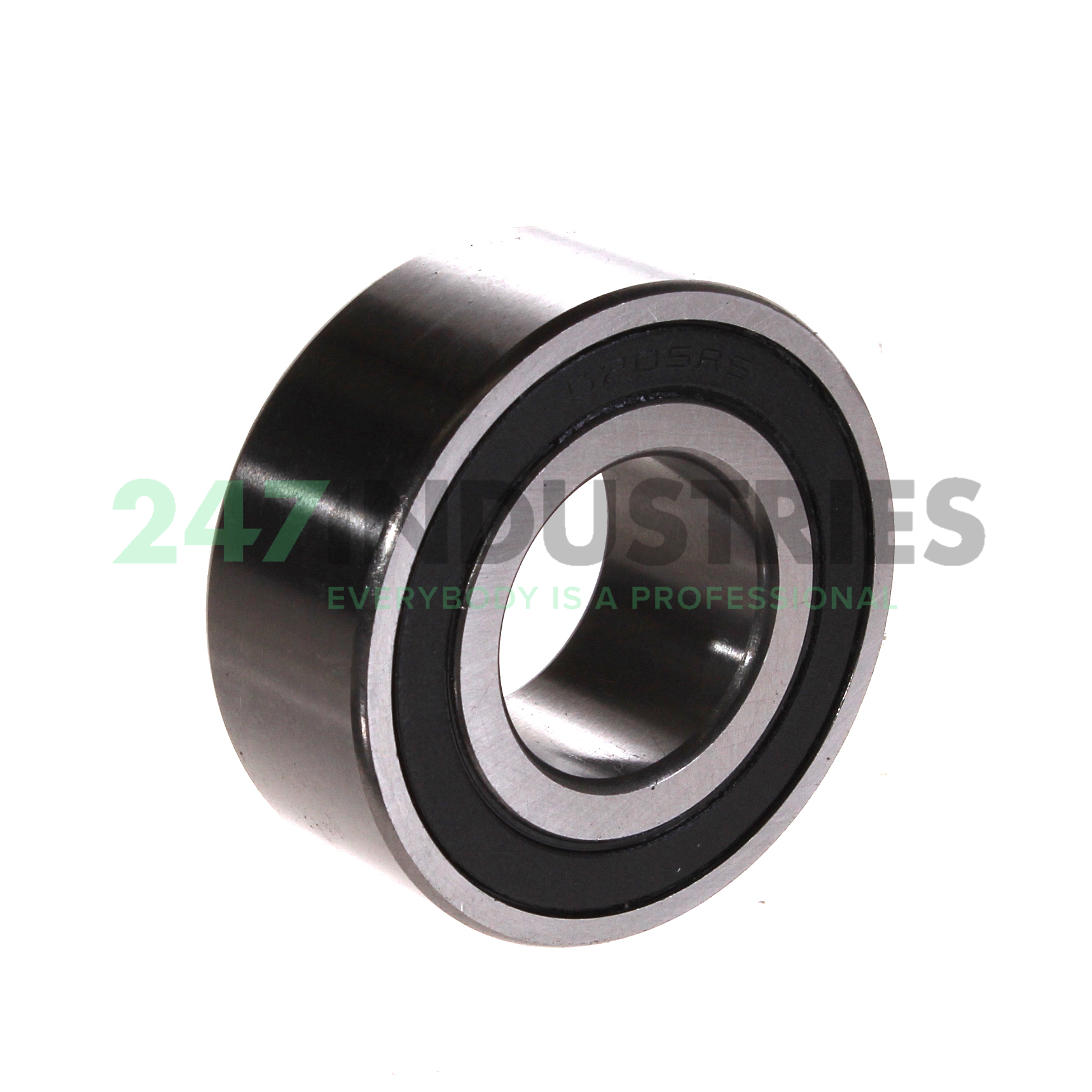

5205 2RS KG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 20,6
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.811

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 16 pcs
2. Brand KG
3. Item number 5205 2RS KG
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.177

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
