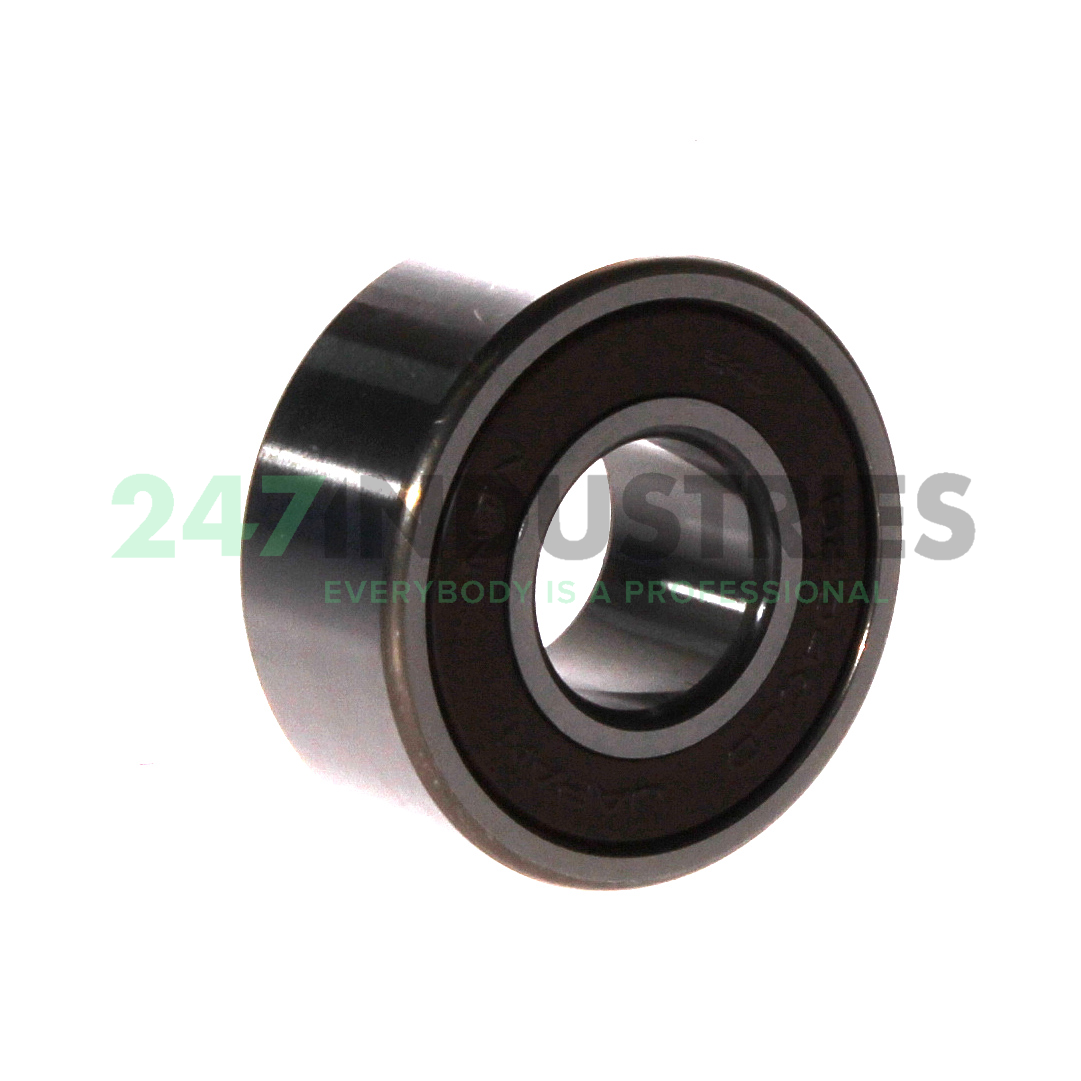

5204SCLLD/2AS NTN

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 20,6
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.811

Suffix description

1. S Pressed Steel Cage
2. C 15° Contact Angle
3. LLD Synthetic Black Rubber Seals, Contact Type, On Both Sides
4. 2A Alvania Grease #2, Standard Fill

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 5204SCLLD/2AS NTN
4. EAN 4547359754568
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.155

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
