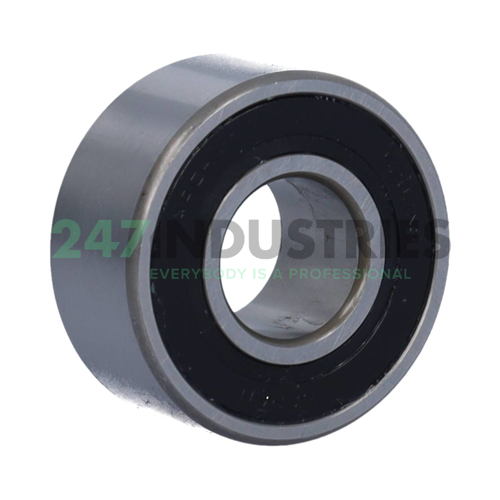

5202-2NSC3 Nachi

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 35
3. Width (B) MM 15,9
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.378
6. Width (B) Inch 0.626

Suffix description

1. 2NS Rubber Seals At Each Side Of The Bearing
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 798 pcs
2. Brand Nachi
3. Item number 5202-2NSC3 Nachi
4. Also known as 5202 2RS C3

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.066

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
