5201A-2ZTN9 SKF

Name: 5201A-2ZTN9 SKF
Brand: SKF

€ 34,20 ex VAT

€ 41,38 in VAT

€ 34,20 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

5201A-2ZTN9 SKF

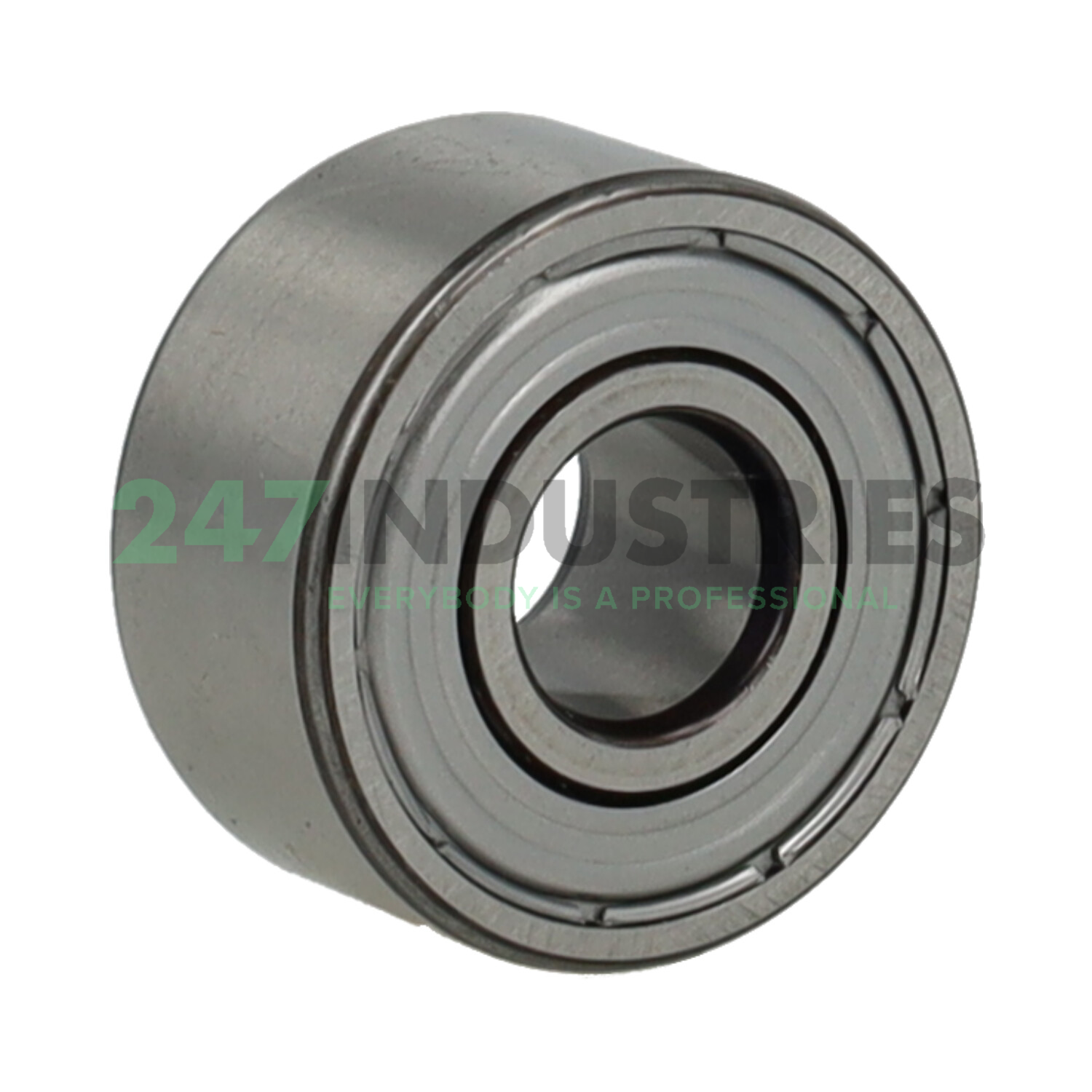

Double row angular contact ball bearing

Stock	2 pcs in stock and ready for shipment
Brand	SKF
Article number	5201A-2ZTN9 SKF
Inside diameter	12mm
Outside diameter	32mm
Width	15,9mm

Product description

The 5201A-2ZTN9 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Similar to: 5201A-2ZTN9 SKF

Loading similair products

Product specifications

Inside diameter 12mm
Outside diameter 32mm
Width 15,9mm

All dimensions

Inner (d) MM 12
Outer (D) MM 32
Width (B) MM 15,9
Inner (d) Inch 0.4724
Outer (D) Inch 1.2598
Width (B) Inch 0.626

Suffix description

A Double Row Angular Contact Ball Bearing Without Filling Slots
2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
