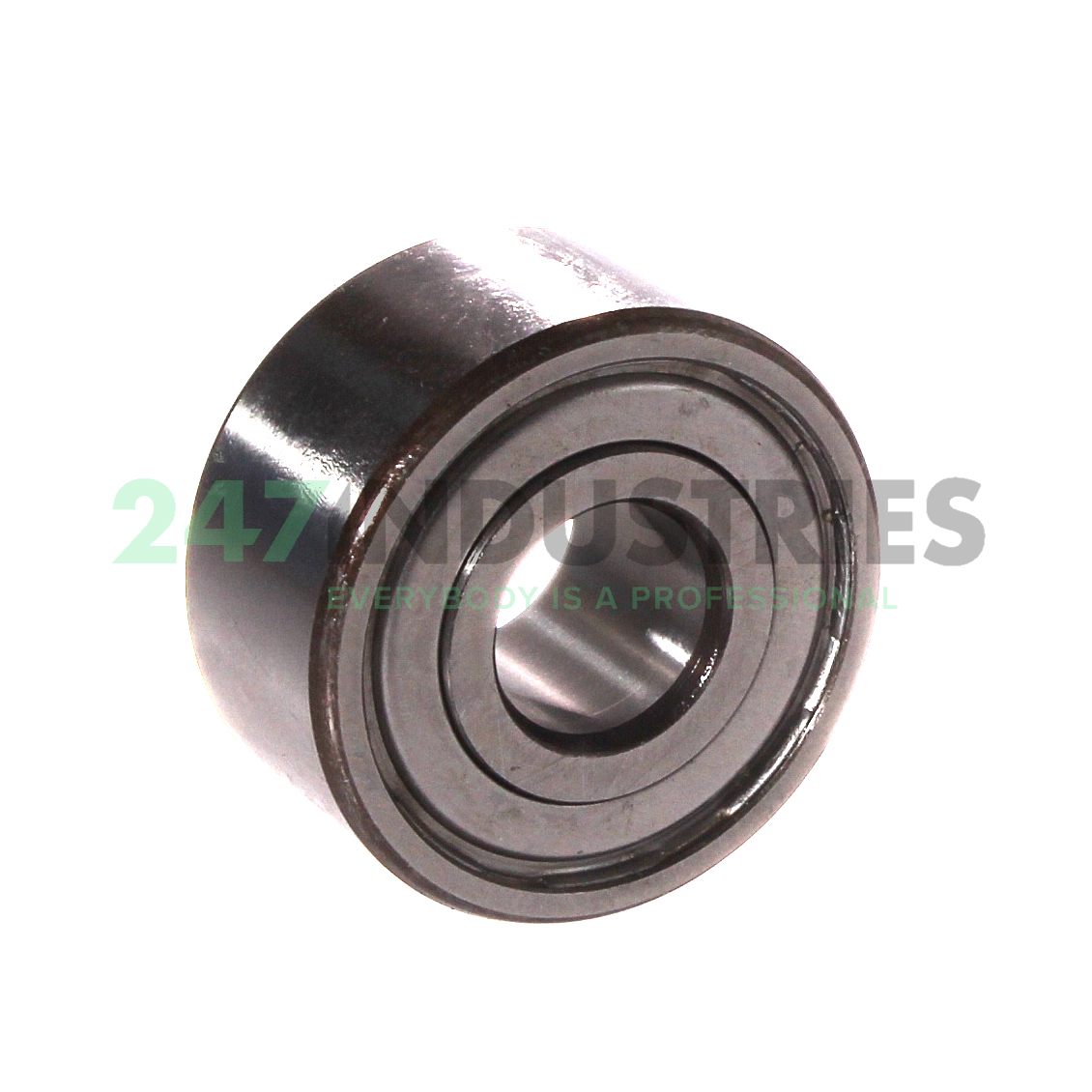

5201.ZZG15 SNR

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 32
3. Width (B) MM 15,9
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.626

Suffix description

1. ZZ Two Metallic Shields
2. G15 Injection Moulded Cage Of Glass Fibre Reinforced Polyamide 6,6, Rolling Element Centered

Technical details

1. Availability 4 pcs
2. Brand SNR
3. Item number 5201.ZZG15 SNR
4. Also known as 5201A-2ZTN9
   5201ZZ G15

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.059

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
