51106 FBJ

Single-direction thrust ball bearing

Stock
not in stock
Brand FBJ
Article number 51106 FBJ
Inside diameter 30mm
Outside diameter 47mm
Width 11mm
Product description

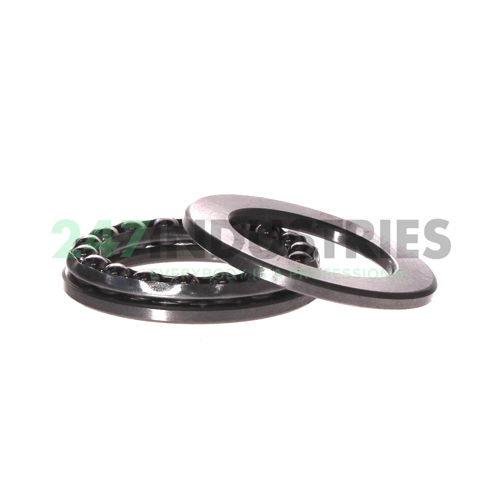

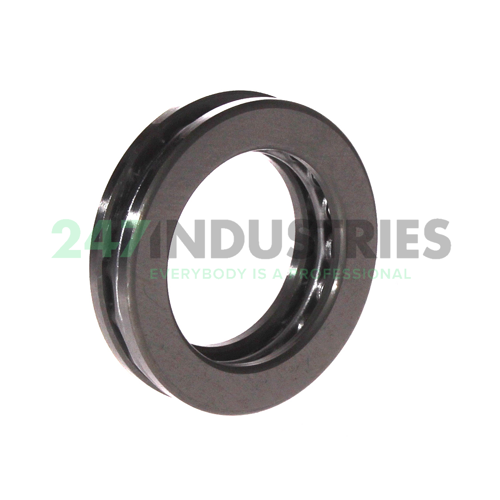

The 51106 FBJ belongs to the single direction thrust ball bearings, also called ball thrust bearings or axial deep groove ball bearings. These bearings consist of a shaft ring, a housing ring and a ball and cage assembly. Thrust ball bearings have an open design. The balls make them suitable for high rotational speeds.

Single direction thrust ball bearings can only be loaded axially in one direction. A shaft can be locked in one direction this way. Radially, they must not be loaded. The shaft ring is attached to the shaft. This ring rotates along with the shaft. The housing ring has a slightly larger bore diameter, allowing the shaft to pass with some clearance.

As thrust ball bearings can be disassembled, the components can easily be mounted separately. Be careful not to mix up the shaft and housing ring when you are assembling the bearing. The housing ring of the 51106 FBJ has a flat seat. As a result, this bearing cannot compensate for any misalignment between the shaft and housing.

Read more Show less
Help with this product

Similar to: 51106 FBJ

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 47
  3. Width (B) MM 11
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 1.8504
  6. Width (B) Inch 0.4331

Technical details

  1. Availability 0 pcs
  2. Brand FBJ
  3. Item number 51106 FBJ
  4. Category Thrust Ball Bearing Single Direction

Weight and Dimensions

  1. Weight (kg) 0.068

Product Properties

  1. Cage Type S - Steel or Standard Cage
  2. Precision Standard Precision
